1794-IE8
Impuestos incl.
Los costos de transporte dependen del destino, precio de compra, peso, plazo de envío y si es un pedido de palets.
Envío exprés y pedidos urgentes
Con el envío exprés, el producto se entrega más rápidamente. Para productos que aún no están listos para el envío, puedes hacer un pedido urgente. Estos productos aún necesitan ser revisados.
Un pedido urgente está listo para el envío en 2 días hábiles y luego puede ser enviado de forma exprés. Esto se puede seleccionar durante el pago.
Descripción para 1794-IE8
1794 FLEX, FLEX EX, FLEX XT I/O SYSTEM, ANALOG INPUT MODULES, 8 SINGLE-ENDED INPUTS

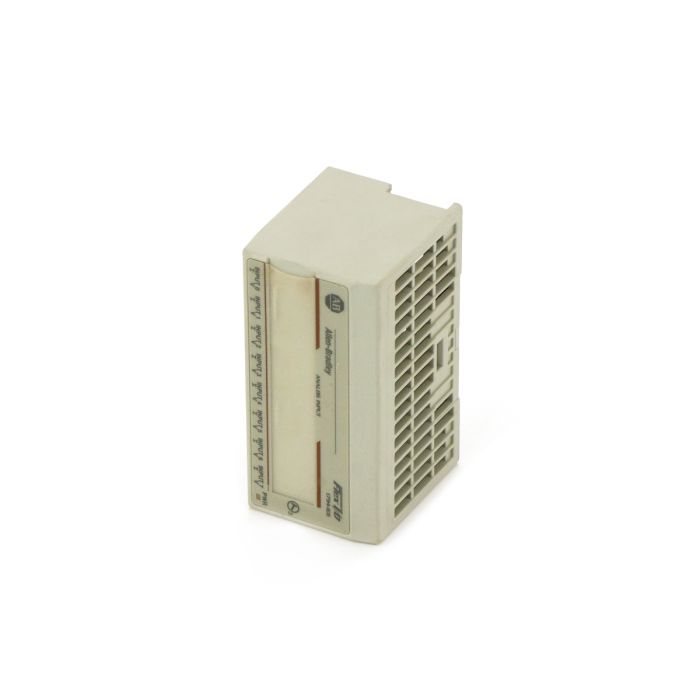

Allen-Bradley 1794-IE8 – FLEX I/O 8-Channel Analog Input Module
The Allen-Bradley 1794-IE8 is an 8-channel analog input module from the FLEX I/O series, designed to interface analog signals with Allen-Bradley programmable controllers. It supports various voltage and current input ranges, making it suitable for diverse industrial applications.
Technical Specifications:
• Number of Inputs: 8 single-ended, non-isolated channels
• Input Ranges (user-configurable):
o Voltage: ±10V, 0–10V
o Current: 0–20 mA, 4–20 mA
• Resolution:
o Voltage: 12 bits unipolar, 11 bits plus sign bipolar
o Current: 5.13 µA/count
• Conversion Type: Successive approximation
• Conversion Rate: 256 µs for all channels
• Input Impedance:
o Voltage: 100 kΩ
o Current: 238 Ω
• Power Supply: 24V DC nominal (10.5–31.2V DC), 60 mA
• Isolation Voltage: 50V continuous between field side and system side
• Dimensions (HxWxD): 46 x 94 x 53 mm (1.8 x 3.7 x 2.1 in.)
• Recommended Terminal Bases: 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3T, 1794-TB3TS, 1794-TBKD, 1794-TB37DS
• Certifications: CE, c-UL-us, KCC, RCM, CI
Key Advantages:
• High Channel Density: Provides 8 analog input channels in a compact module, optimizing space in control panels.
• Flexible Configuration: Supports multiple voltage and current input ranges, allowing adaptability to various sensors and signal types.
• Fast Conversion Rate: Ensures timely data acquisition with a conversion rate of 256 µs for all channels.
• Easy Integration: Compatible with Allen-Bradley programmable controllers and FLEX I/O systems, facilitating seamless integration.
• Robust Design: Engineered to operate reliably in industrial environments, with appropriate certifications for safety and performance.
The Allen-Bradley 1794-IE8 module is a versatile and reliable solution for acquiring analog signals in industrial automation systems, offering high performance and flexibility to meet various application needs.
The Allen-Bradley 1794-IE8 is an 8-channel analog input module from the FLEX I/O series, designed to interface analog signals with Allen-Bradley programmable controllers. It supports various voltage and current input ranges, making it suitable for diverse industrial applications.
Technical Specifications:
• Number of Inputs: 8 single-ended, non-isolated channels
• Input Ranges (user-configurable):
o Voltage: ±10V, 0–10V
o Current: 0–20 mA, 4–20 mA
• Resolution:
o Voltage: 12 bits unipolar, 11 bits plus sign bipolar
o Current: 5.13 µA/count
• Conversion Type: Successive approximation
• Conversion Rate: 256 µs for all channels
• Input Impedance:
o Voltage: 100 kΩ
o Current: 238 Ω
• Power Supply: 24V DC nominal (10.5–31.2V DC), 60 mA
• Isolation Voltage: 50V continuous between field side and system side
• Dimensions (HxWxD): 46 x 94 x 53 mm (1.8 x 3.7 x 2.1 in.)
• Recommended Terminal Bases: 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3T, 1794-TB3TS, 1794-TBKD, 1794-TB37DS
• Certifications: CE, c-UL-us, KCC, RCM, CI
Key Advantages:
• High Channel Density: Provides 8 analog input channels in a compact module, optimizing space in control panels.
• Flexible Configuration: Supports multiple voltage and current input ranges, allowing adaptability to various sensors and signal types.
• Fast Conversion Rate: Ensures timely data acquisition with a conversion rate of 256 µs for all channels.
• Easy Integration: Compatible with Allen-Bradley programmable controllers and FLEX I/O systems, facilitating seamless integration.
• Robust Design: Engineered to operate reliably in industrial environments, with appropriate certifications for safety and performance.
The Allen-Bradley 1794-IE8 module is a versatile and reliable solution for acquiring analog signals in industrial automation systems, offering high performance and flexibility to meet various application needs.
JC-Electronics no es un distribuidor autorizado oficial de Allen-Bradley. La garantía del fabricante original no se aplica. En su lugar, le ofrecemos una garantía de 2 años según nuestras directrices JCertified.
No es posible enviar nuevos productos Allen-Bradley a los Estados Unidos.
Positive Results
Cuando usted elige productos electrónicos reacondicionados JCertified, ahorra agua, materias primas y CO₂ necesarios para la producción de nuevos productos electrónicos. Consulte a continuación exactamente cuánto ahorra con este producto reacondicionado específico:
CO2 eq
Resource use minerals and metals
Water use
-90%
-98%
-94%
Especificaciones
Fabricante:
Allen-Bradley
Rango:
Flex
Tipo de producto:
Analog modules
Fase de producto:
Active
Dimensiones (cm):
25,00 x 12,00 x 10,00
Peso:
0,50 kg
codigo de mercancia:
85371091
Codigo de exportacion ECCN:
N
Preguntas sobre productos (8)
