3UG4621-1AW30

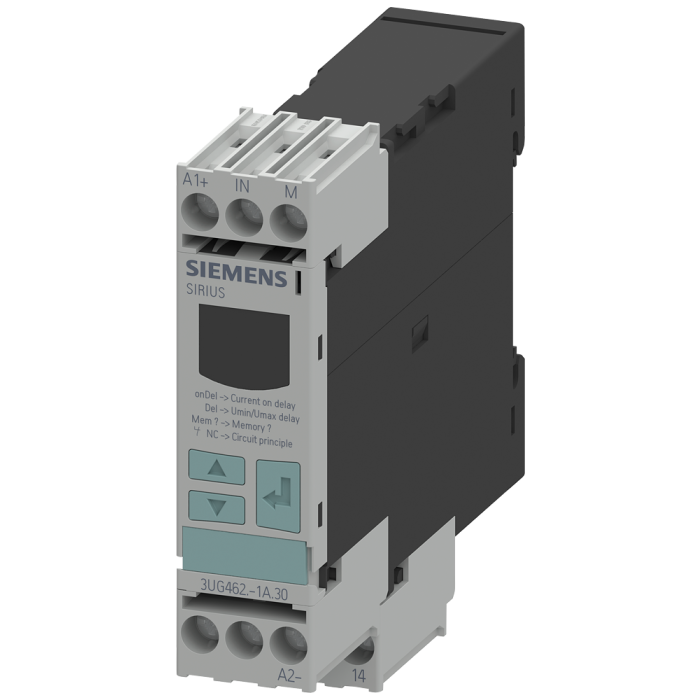

Siemens 3UG4621-1AW30

Digital monitoring relay Current monitoring, 22.5 mm from 2-500 mA…
Tell us what you need?

If this product is not available right now, our sourcing team can help find an alternative or create a special order for you.

Condition
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

The 3UG4621-1AW30 Digital Monitoring Relay from Siemens is engineered for precise current monitoring, featuring a compact design measuring just 22.5 mm. It efficiently monitors currents from 2 mA to 500 mA, accommodating both AC and DC applications.

This relay supports a wide voltage range of 24 to 240 V AC/DC and functions optimally at frequencies of 50 to 60 Hz. Its adjustable ON delay and noise pulse delay offer flexibility with settings between 0.1 to 20 seconds.

Designed with a hysteresis range of 0.1 to 250 mA, it provides reliable performance with one change-over contact, ensuring robust operation whether fault buffering is activated or not. Furthermore, this model supersedes the previous variants including 3UG3521-1AL20, 3UG3521-1AG20, and 3UG3521-1AC48-0AA1.

Invest in the 3UG4621-1AW30 for superior monitoring capabilities that enhance your electrical systems' efficiency and reliability.

Digital monitoring relay Current monitoring, 22.5 mm from 2-500 mA AC/DC 0vershoot and undershoot 24 to 240 V AC/DC 50 to 60 Hz DC and AC ON delay and noise pulses delay 0.1 to 20 s Hysteresis 0.1 to 250 mA 1 change-over contact with or without fault buffer screw terminal Successor product for 3UG3521-1AL20, 3UG3521-1AG20 and 3UG3521-1AC48-0AA1
General
Manufacturer:
Siemens
Range:
Sirius
Type of product:
Relays
PLM
Product phase:
Active
Logistics
Dimensions (cm):
2,25 x 9,10 x 9,20
Weight:
0.15kg
Commodity Code:
85364900
Export Control Regulations (ECCN):
N
EAN:
4011209642409
