3WL1116-3CB34-4AS2-Z

Siemens 3WL1116-3CB34-4AS2-Z

FIXED BUILT-IN CIRCUIT BREAKER 3-POLE, SIZE 1, IEC IN=1600A TO 690V,…
Tell us what you need?

If this product is not available right now, our sourcing team can help find an alternative or create a special order for you.

Condition
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

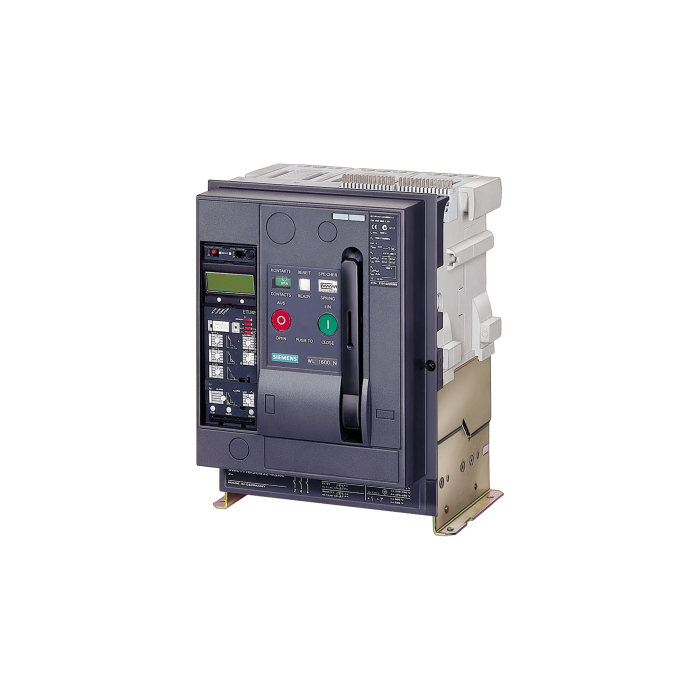

The Siemens 3WL1116-3CB34-4AS2-Z is a robust and reliable fixed built-in circuit breaker designed to meet the demanding requirements of the electrical industry. This 3-pole circuit breaker is engineered for high performance with a rated current of 1600A and a voltage range of up to 690V under AC 50/60 Hz applications.

Featuring a compact Size 1 configuration, this circuit breaker enhances operational efficiency and protects against overcurrent and short circuits. It comes equipped with an overcurrent release system, adjustable from 0.4 to 1 for precise control, and can operate with both motor and manual drive options.

The double hole front connection allows for swift installation, and with a stipulated interrupting capacity (ICU) of 66KA at 500V, safety is paramount in high-load settings. Additionally, it incorporates undervoltage protection with configurable delay settings to mitigate risks effectively. Designed for use on Euro-pallets and manufactured in the Czech Republic, the Siemens 3WL1116-3CB34-4AS2-Z is the ideal choice for reliable circuit protection.

FIXED BUILT-IN CIRCUIT BREAKER 3-POLE, SIZE 1, IEC IN=1600A TO 690V, AC 50/60 HZ ICU=66KA AT 500V FRONT CONNECTION TOP/BOTTOM DOUBLE HOLE OVERCURRENT RELEASE ETU 25 LSI PROTECTION ADJUSTABLE 0.4-1 IN MOTOR/MANUAL DRIVE WITH STORAGE DRIVE MOTOR AC 50/60HZ 208-240V RESP. DC 220-250V DEMAND AC 50/60HZ 230V, DC 220V WITHOUT 1. TRIP COIL WITH 2. TRIP COIL "RC", F4 UNDERVOLTAGE, DELAY 0.2-3.2S AC 208-240V, DC 220-250V, 100% DUTY CYCLE 2NO +2NC
General
Manufacturer:
Siemens
Range:
Sentron
Type of product:
Circuit breakers
PLM
Product phase:
Phase-Out
Logistics
Weight:
43.00kg
Commodity Code:
85362090
