6AV2124-0JC01-0AX0

Need more units?

We will support you, please fill in this

Transport and Handling Information

The transportation costs depend on the destination, purchase price, weight, shipping speed, and whether it is a pallet order.

Express shipping and rush orders

With express shipping, the product is delivered faster. For products that are not yet ready for shipping, you can place a rush order. These products still need to be revised.

A rush order is ready for shipping within 2 business days and can then be shipped express. This can be selected during checkout.

Condition

Do you want to save 99% on raw materials? Choose refurbished!

Repair

Select service ( €884.00 )

Available on backorder

6AV2124-0JC01-0AX0 New factory sealed

€1,526.97 (Excl. Tax)

20+ In Stock

Expected within 3 weeks

Description for 6AV2124-0JC01-0AX0

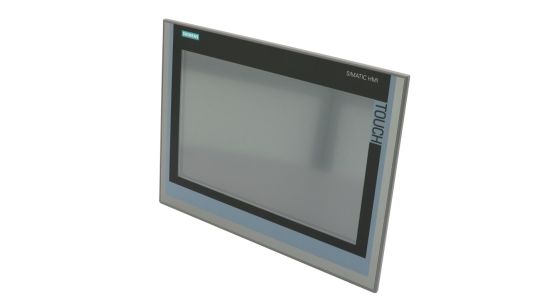

Siemens SIMATIC HMI TP900 Comfort Panel (6AV2124-0JC01-0AX0)

The Siemens SIMATIC TP900 Comfort Panel is a high-performance Human Machine Interface (HMI) designed for advanced industrial automation applications. Featuring a 9-inch widescreen TFT display with 16 million colors, it provides intuitive touch operation and seamless integration into PROFINET and MPI/PROFIBUS DP networks.

Technical Specifications:
• Display: 9" widescreen TFT, 800 x 480 pixels, 16 million colors
• Touchscreen: Analog-resistive
• Processor: x86 architecture
• User Memory: 12 MB
• Operating System: Windows CE 6.0
• Interfaces:
o 2 x PROFINET (RJ45)
o 1 x MPI/PROFIBUS DP
o 2 x USB 2.0
o 1 x RS422/485
o 2 x SD card slots
• Power Supply: 24 V DC (19.2–28.8 V DC)
• Power Consumption: Approximately 18 W
• Dimensions (W x H x D): 274 x 190 x 62.7 mm
• Weight: Approximately 1.9 kg
• Protection Rating: Front: IP65; Rear: IP20
• Certifications: CE, cULus, RCM, KC, ATEX Zone 2/22, IECEx Zone 2/22, Marine approvals (GL, ABS, BV, DNV, LRS, NK)
• Configuration Software: WinCC Comfort V11 or higher

Key Advantages:
• High-Resolution Display: The 9-inch TFT screen with 16 million colors ensures clear and detailed visualization of processes.
• Versatile Connectivity: Multiple interfaces, including PROFINET and MPI/PROFIBUS DP, allow for flexible integration into various network architectures.
• Robust Design: With an IP65-rated front panel and certifications for use in hazardous areas, the TP900 is built for demanding industrial environments.
• Advanced Functionality: Supports features like recipe management, alarm handling, and trend analysis, enhancing operational efficiency.
• User-Friendly Configuration: Compatible with Siemens' TIA Portal software, facilitating easy setup and maintenance.

The Siemens SIMATIC TP900 Comfort Panel offers a reliable and efficient solution for monitoring and controlling industrial processes, combining advanced features with a user-friendly interface.

The Siemens 6AV2124-0JC01-0AX0 is a SIMATIC HMI TP900 Comfort Panel designed for efficient and intuitive operation in industrial environments. Featuring a 9-inch widescreen TFT display with support for 16 million colors, this panel offers clear visualization for complex production processes. The 6AV2124-0JC01-0AX0 supports both PROFINET and MPI/PROFIBUS DP interfaces, ensuring versatile connectivity options for integration with various control systems. With a robust 12 MB configuration memory and operating on Windows CE 6.0, the 6AV2124-0JC01-0AX0 provides reliable performance and straightforward configuration through WinCC Comfort V11 software.

Quick delivery from large stock ensures minimal downtime for your production line
Refurbished units available with standard 2-year warranty for sustainable and cost-effective solutions
Siemens quality guarantees reliable operation in demanding industrial applications

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-80%

Resource use minerals and metals

-99%

Water use

-86%

Specifications

Manufacturer:

Siemens

Range:

SIMATIC HMI

Subrange:

Comfort panels

Type of product:

Comfort panels

Supply voltage:

24V DC

Product phase:

Active

Supply voltage:

24V DC

Screen diagonal:

9" inch

Type of display:

TFT

Display resolution:

800 x 480 pixels

Type of operation:

Touch

IO link master:

Yes

With colour display:

Yes

Display colours:

16777216

Memory:

12288 kbyte

Supporting protocol:

Profinet, Profibus

Dimensions (cm):

49,80 x 36,00 x 12,20

Weight:

2.51kg

Commodity Code:

85371091

Export Control Regulations (ECCN):

5A992

Downloads

Datasheet 6AV2124-0JC01-0AX0 165.51 kB

Product Questions (8)

Can I have products repaired urgently?

Yes, you can. With an urgent repair, your product will be repaired within 3 working days. Contact the Sales team via sales@jc-electronics.com for this.

Why can I trust refurbished electronics from JC-Electronics?

All products are thoroughly cleaned, defects are repaired, and weak elements are proactively replaced. If they pass the endurance test, the products can be sold. You can recognize them by the JCertified warranty seal. The entire process has received the RecQ quality mark from DEKRA and the ISO14001:2015 certificate

How much warranty do I get on a product?

You always get a 2-year warranty on products, both refurbished and new. This is twice as much as the standard factory warranty from many manufacturers.

Are all products available from stock immediately?

New and tested refurbished products from our stock are always available immediately. Untested and non-refurbished products undergo a thorough refurbishment and an extensive testing procedure before shipment.

Can I order products urgently?

Yes, you can. New and refurbished products that are ready for shipment will be dispatched the same day if the order is received before 16:00 CET. An express shipment to the Netherlands, Belgium, Luxembourg, Germany, Austria, Switzerland, France, or Italy will arrive the next day. An express shipment to other countries in the European Union takes 2 days. An express shipment to countries outside the European Union takes 3 days.

Why should I buy refurbished electronics?

There are several reasons to purchase a refurbished product. For example, because electronics are no longer made and are hard to get new. But also because refurbished is a sustainable choice, reducing your organization's ecological footprint. Whatever the reason, you always get a 2-year warranty on both refurbished and new electronics at JC-Electronics.

How much are transport costs?

Transport costs are usually included in the price. There are a few exceptions. Check the overview of all transport costs.

How do I order a product or repair online?

First, find your product in the webshop. On the product page, you can add the product or repair to your shopping cart. Then proceed to checkout.
