6ES7647-6BF46-0AB3_0

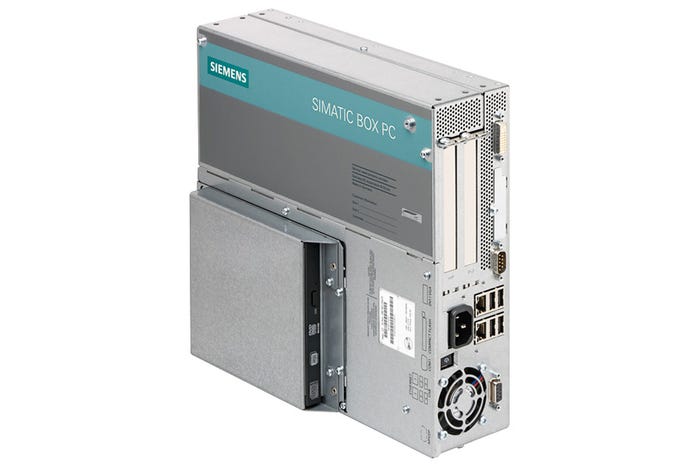

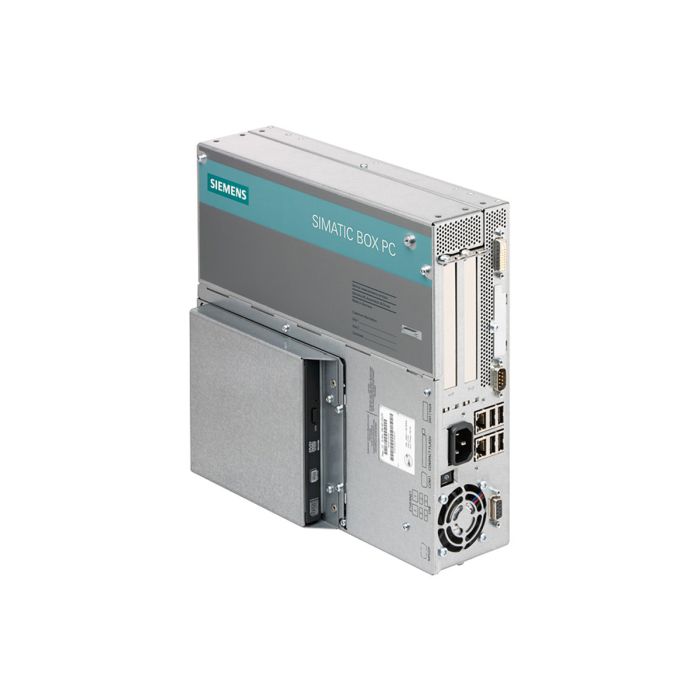

Siemens 6ES7647-6BF46-0AB3

SIMATIC BOX PC 627B; GRAFIK ONBOARD,128 MB SHARED MEMORY; 2X
Condition
How does requesting a repair work?
  1. Add the repair to your cart and complete your order
  2. You'll receive an RMA form by email
  3. Pack your product with the RMA form and send it to us
  4. We repair and test it, then return it in 2 weeks
+ €373.00
Excl. Tax
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

The SIMATIC BOX PC 627B is engineered to meet the demanding requirements of the electrical industry, offering advanced performance in a compact form factor.

Equipped with onboard graphics and 128 MB shared memory, this PC ensures efficient processing for a wide range of applications. The dual Ethernet ports (2X10/100/1000 MBIT/S) allow for versatile connectivity options, facilitating seamless communication within your industrial network.

This model features four USB 2.0 ports for high-current applications and a serial port (COM1) for additional connectivity. A RAID controller enhances data reliability, and the compact flash drive located on the front side provides easy access to storage.

The watch dog functionality, combined with temperature and fan monitoring, guarantees optimal operational conditions for reliability suited for industrial environments. Powered by a Core 2 Duo T5500 processor that operates at 1.66GHz, this system is designed for robust multitasking.

Its specifications include 2 MB buffered SRAM, 3 GB DDR2 667 SODIMM RAM, and a 160 GB SATA HDD, ensuring that it is up to the task for data-intensive applications. The system is powered with a DC 24V industrial power supply for consistent power delivery.

This PC runs on Windows XP Professional, multi-language SP2, and includes SIMATIC PC DIAGMONITOR V3.1 & IMAGE CREATOR software V2.1, making it a comprehensive solution for your business needs.

Manufacturered in Germany by Siemens, the SIMATIC BOX PC 627B is an obsolete item as of 2015, and it is phase-out scheduled until 2010.

SIMATIC BOX PC 627B; GRAFIK ONBOARD,128 MB SHARED MEMORY; 2X10/100/1000 MBIT/S ETHERNET RJ45; 4 X USB V2.0 (HIGH CURRENT); 1XSERIAL (COM1) RAID-CONTROLLER ON BOARD; COMPACT FLASH DRIVE NR.1 FRONT SIDE (WITHOUT CF); WATCHDOG, TEMP.-/FAN- MONITORING; CORE 2 DUO T5500 (1.66GHZ, 2MB L2, 667MHZ FSB); PROFINET (3XRJ45,CP1616 COMPATIBLE); 2 MB BUFFERED SRAM; 3 GBYTE DDR2 667 SODIMM; DC 24V INDUSTRAL- POWER SUPPLY; 2 X PCI FREE; 160 GBYTE HDD SATA; WINDOWS XP PROF. MULTI-LANG. SP2 (EN, GER, FR, IT, SP); SIMATIC PC DIAGMONITOR V3.1 & IMAGE CREATOR SOFTWARE V2.1 INCLUDED;
General
Manufacturer:
Siemens
Range:
Simatic Box PC
Subrange:
PC627B
Type of product:
PC box
PLM
Product phase:
Obsolete
Logistics
Dimensions (cm):
120,50 x 50,50 x 10,00
Weight:
7.00kg
Commodity Code:
85371091
Export Control Regulations (ECCN):
5D992
