6SL3210-1KE23-8AF1

Notify me when stock is available

Condition

Repair

Select service ( €970.00 )

Available on backorder

6SL3210-1KE23-8AF1 New factory sealed

€1,934.51 (Excl. Tax)

20+ In Stock

Expected within 3 weeks

Description for 6SL3210-1KE23-8AF1

SINAMICS G120C RATED POWER 18,5KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSC 295x 140x 225,4 (HXWXD) EXTERNAL 24V

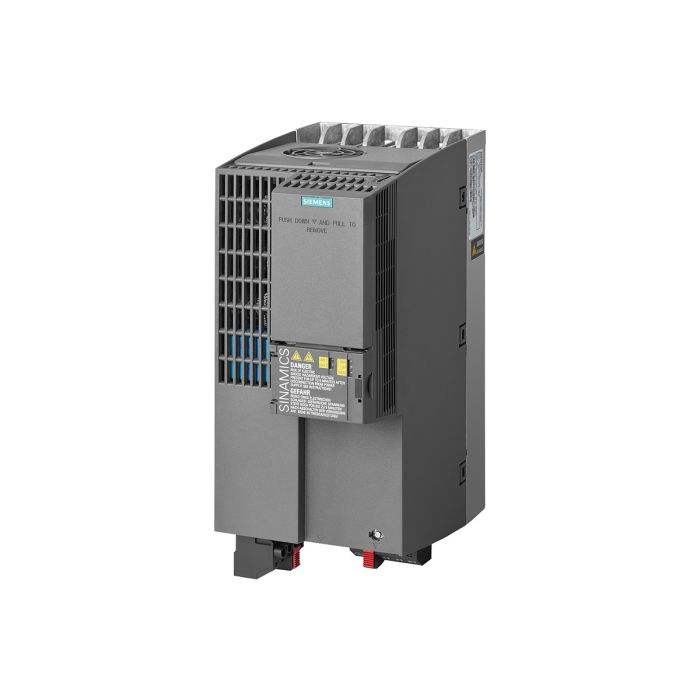

The Siemens 6SL3210-1KE23-8AF1 is an industrial frequency inverter from the SINAMICS G120C series, designed for efficient motor control in demanding production environments. With a rated power of 18.5 kW and the capability to handle 150% overload for up to 3 seconds, this drive ensures robust performance under fluctuating loads. Operating at 3AC 380-480V with a tolerance of +10/-20% and a frequency range of 47-63 Hz, the 6SL3210-1KE23-8AF1 offers flexibility for various industrial applications.

Equipped with an integrated Class A filter, the Siemens 6SL3210-1KE23-8AF1 supports reliable operation in sensitive environments. The I/O interface provides 6 digital inputs, 2 digital outputs, 1 analog input, and 1 analog output, allowing seamless integration into complex automation systems. Advanced safety is ensured with the Safe Torque Off (STO) function, while integrated PROFINET-PN fieldbus support streamlines communication with modern control systems. The inverter features IP20/UL Open Type protection and measures 295 x 140 x 225.4 mm (HxWxD). An external 24V power supply is required for operation.

Siemens 6SL3210-1KE23-8AF1 offers high overload capacity for reliable start-up and heavy-duty cycles
Integrated PROFINET-PN fieldbus enables easy connectivity in networked production environments
Safe Torque Off (STO) function enhances operational safety standards

The Siemens 6SL3210-1KE23-8AF1 is available from stock for rapid delivery, with the added option for refurbished units that include a standard 2-year warranty.

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120C

Type of product:

Built-in units

Product phase:

Active

Supply voltage:

380-480V AC

Main Voltage:

380-480V AC

Main frequency:

50/60 Hz

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

38 A

Nom. power rating:

15 kW

Degree of protection:

IP20

Degree of protection:

IP20

Dimensions (cm):

14,00 x 22,50 x 29,50

Weight:

5.40kg

Commodity Code:

85044086

Export Control Regulations (ECCN):

Downloads

Datasheet 6SL3210-1KE23-8AF1 237.23 kB
