Description for 6SL3210-1NE24-5AL0

SINAMICS G120 POWER MODULE PM230 WITH BUILT IN CL. A FILTER PROTECTION IP20 3AC380-480V +10/-10% 47-63HZ OUTPUT LOW OVERLOAD: 22KW FOR 110% 60S,100% 240S AMBIENT TEMP 0 TO +40 DEG C(LO) 419 X 275 X 204 (HXWXD), FSD WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU240B/E-2 AND CU230P-2 FIRMWARE-VERSION V4.4 NOTE: PM230 DOES NOT SUPPORT SAFETY

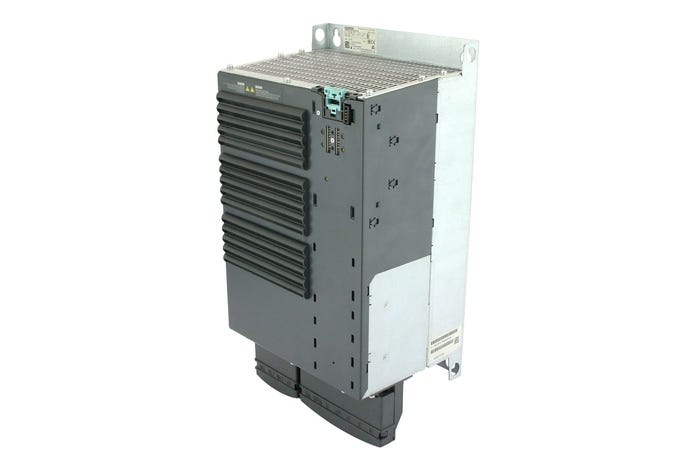

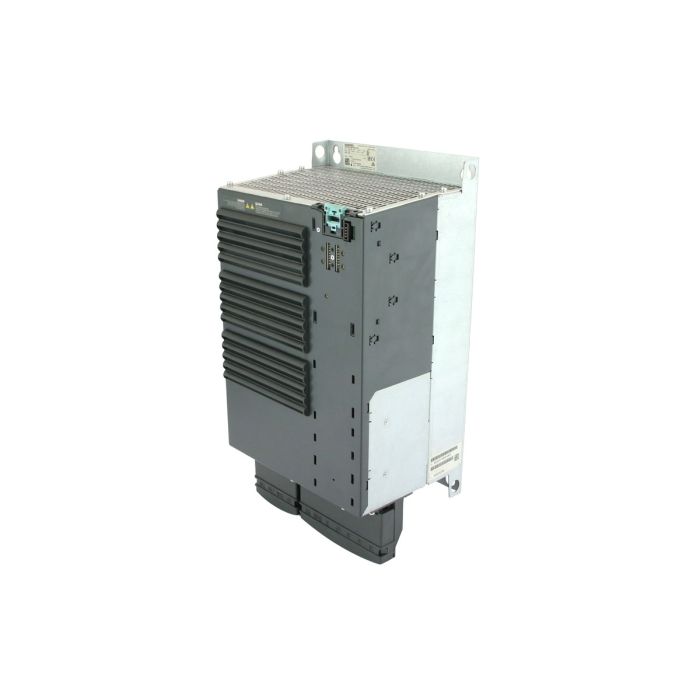

The 6SL3210-1NE24-5AL0 is a Siemens SINAMICS G120 Power Module PM230, engineered for reliable and efficient operation within industrial environments. This power module operates at 3-phase 380-480V AC (±10%) with a frequency range of 47-63Hz. Designed for low overload applications, the unit delivers a consistent 22 kW output at 110% load for 60 seconds and 100% for 240 seconds. The robust construction features IP20 protection and is suitable for ambient temperatures from 0 to +40°C. Measuring 419 x 275 x 204 mm (HxWxD), the 6SL3210-1NE24-5AL0 ensures optimal integration into standard control cabinets.

Brand: Siemens (SINAMICS G120 Power Module PM230)
Quick delivery from extensive stock, minimizing production downtime
Refurbished options available with a standard 2-year warranty for sustainable and cost-effective maintenance

The 6SL3210-1NE24-5AL0 is supplied without a control unit or panel and is approved for use with CU240B/E-2 and CU230P-2 (firmware version V4.4). It includes a built-in Class A filter for electromagnetic compatibility. Note: The PM230 does not support integrated safety functions. With its reliable performance and Siemens quality, the 6SL3210-1NE24-5AL0 is a dependable solution for maintaining and upgrading production lines.

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120

Type of product:

Power modules

Product phase:

Phase-Out

Supply voltage:

380-480V AC

Main Voltage:

380-480V AC

Main frequency:

50/60 Hz

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

45 A

Nom. power rating:

18.5 kW

Degree of protection:

IP20

Degree of protection:

IP20

Dimensions (cm):

27,50 x 20,40 x 51,20

Weight:

14.70kg

Commodity Code:

85044086

Export Control Regulations (ECCN):

EAR99
