Description for 6SL3210-1NE27-5AL0

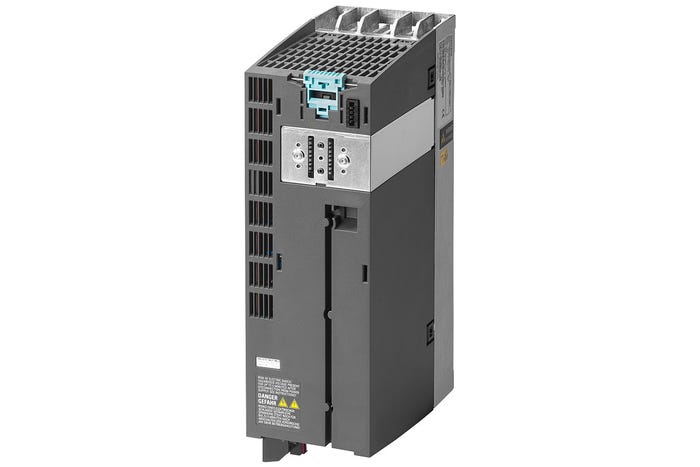

The 6SL3210-1NE27-5AL0 from Siemens is a SINAMICS G120 Power Module PM230 designed for advanced industrial automation systems. This unit is equipped with an integrated Class A filter and offers IP20 protection. The module operates with a three-phase 380-480V AC input (tolerance +10/-10%) at 47-63Hz. It delivers a low overload output of 37kW, supporting 110% load for 60 seconds and 100% for 240 seconds, making it suitable for demanding production environments. The ambient operating temperature ranges from 0°C to +40°C in low overload mode. The dimensions of the unit are 635 mm (height) x 275 mm (width) x 204 mm (depth). The 6SL3210-1NE27-5AL0 is supplied without a control unit and panel, and is compatible with CU240B/E-2 and CU230P-2 control units (firmware version V4.4).

Brand: Siemens (mentioned for clarity and compliance with specification requirements)
Rapid delivery from extensive stock minimizes production downtime
Sustainable option available through refurbished versions, all with a standard 2-year warranty

The 6SL3210-1NE27-5AL0 is ideal for project managers and production leaders seeking a reliable power module solution for industrial applications, with Siemens' reputation for quality and reliability. Please note: This PM230 module does not support safety functions.

SINAMICS G120 POWER MODULE PM230 WITH BUILT IN CL. A FILTER PROTECTION IP20 3AC380-480V +10/-10% 47-63HZ OUTPUT LOW OVERLOAD: 37KW FOR 110% 60S,100% 240S AMBIENT TEMP 0 TO +40 DEG C(LO) 635 X 275 X 204 (HXWXD), FSD WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU240B/E-2 AND CU230P-2 FIRMWARE-VERSION V4.4 NOTE: PM230 DOES NOT SUPPORT SAFETY

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120

Type of product:

Power modules

Product phase:

Phase-Out

Main Voltage:

380-480V AC

Main frequency:

50/60 Hz

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

75 A

Nom. power rating:

30 kW

Degree of protection:

IP20

Degree of protection:

IP20

Dimensions (cm):

27,50 x 20,40 x 63,50

Weight:

20.50 kg

Commodity Code:

85044086

Export Control Regulations (ECCN):

EAR99
