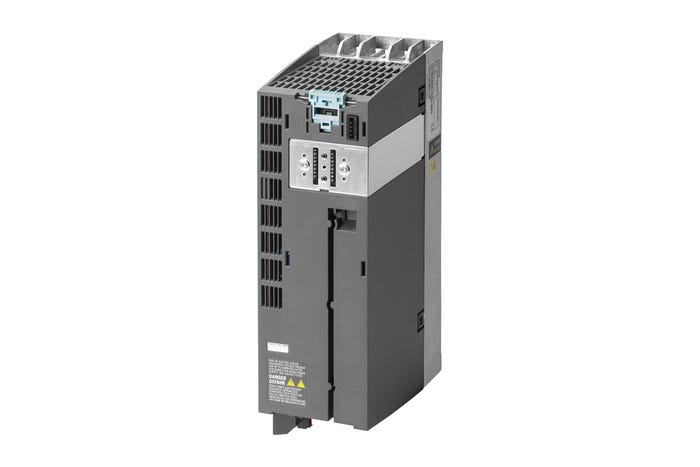

Siemens 6SL3210-1PB17-4AL0

SINAMICS POWER MODULE PM240-2 WITH BUILT IN CL. A FILTER WITH BUILT…

Tell us what you need?

If this product is not available right now, our sourcing team can help find an alternative or create a special order for you.

Condition

Repair (incl. JCertified refurbishment)

Unavailable

Other options available

Our supplier may have this item in stock. Ordering directly from them can take longer and may cost more.

Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

The SINAMICS POWER MODULE PM240-2 is designed for optimal performance in industrial applications, integrating a built-in Class A filter and a braking chopper for enhanced efficiency. This power module operates on a nominal power rating of 1.1 kW and supports a wide range of input voltages from 200-240V AC. Ensuring reliability, it boasts output capabilities of up to 1.5 kW under low overload conditions.

Measuring 291 x 100 x 165 mm (HxWxD) and featuring an IP20 degree of protection, the PM240-2 is well-suited for various environments, maintaining operational effectiveness in ambient temperatures ranging from -10 to +50 degrees Celsius. The module is also compliant with CU firmware version V4.6, ensuring compatibility and performance excellence.

With its support for a maximum output frequency of 550 Hz and an output voltage of up to 550 V, the SINAMICS PM240-2 is ideal for applications requiring high overload capacity, delivering 200% for 3 seconds, or 150% for 57 seconds.

Choose the SINAMICS POWER MODULE PM240-2 for a robust and reliable power solution tailored for today’s demanding industrial settings.

SINAMICS POWER MODULE PM240-2 WITH BUILT IN CL. A FILTER WITH BUILT IN BRAKING CHOPPER 1/3AC200-240V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 1,1KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 1,5KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 291 X 100 X 165 (HXWXD), FSB PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.6

General

Manufacturer:

Siemens

Range:

Sinamics

Type of product:

Power modules

PLM

Product phase:

Active

Drive

Main Voltage:

200-240V AC

Main frequency:

50/60 Hz

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

7.4 A

Nom. power rating:

1.1 kW

Degree of protection:

IP20

Degree of protection:

IP20

Logistics

Dimensions (cm):

10,00 x 16,50 x 29,20

Weight:

2.70kg

Commodity Code:

85044095

Export Control Regulations (ECCN):

3A225

EAN:

4042948666333

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-89%

Water use

-57%
