6SL3210-1PC24-2UL0

Notify me when stock is available

Condition

Repair

Select service ( €755.00 )

Available on backorder

6SL3210-1PC24-2UL0 New factory sealed

€1,170.00 (Excl. Tax)

20+ In Stock

Expected within 4 weeks

Description for 6SL3210-1PC24-2UL0

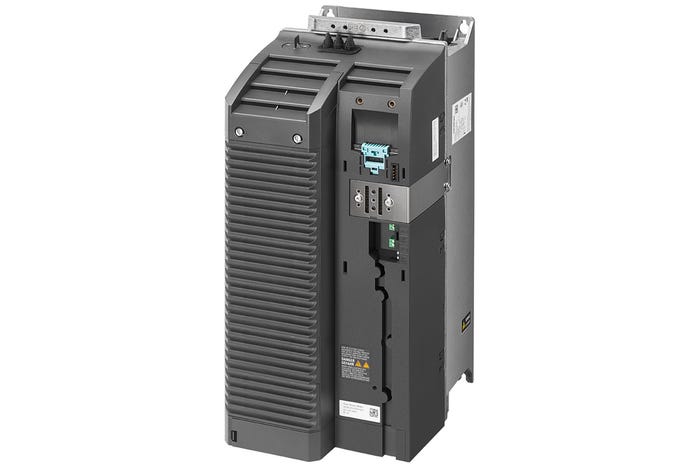

The Siemens 6SL3210-1PC24-2UL0 is a robust power module from the SINAMICS G120 series, designed for demanding industrial automation environments. This PM240-2 unfiltered power module features an integrated braking chopper and supports a 3-phase AC supply of 200–240V (±10%/-20%), operating at frequencies from 47 to 63Hz. With a high overload capacity, it delivers 7.5 kW at 200% for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds at ambient temperatures ranging from -20°C to +50°C. In low overload mode, it provides up to 11 kW at 150% for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds within a -20°C to +40°C range. The dimensions of the unit are 472 x 200 x 237 mm (H x W x D), and it comes with IP20-rated protection for installation in controlled environments. The 6SL3210-1PC24-2UL0 is supplied without a control unit or operator panel and is compatible with CU firmware version V4.7 HF8.

Brand: Siemens (mentioned as required for compliance)
High overload and low overload operational modes for versatile industrial applications
Integrated braking chopper to enhance process control and motor protection
Fast delivery and large stock availability, supporting project continuity
Refurbished options with standard 2-year warranty for sustainable and reliable operation

The Siemens 6SL3210-1PC24-2UL0 is engineered for production line reliability, meeting the needs of project managers and production leaders who prioritize consistent performance and quick installation. The Siemens 6SL3210-1PC24-2UL0 ensures seamless integration and dependable operation in a variety of industrial settings.

SINAMICS G120 POWER MODULE PM240-2 UNFILTERED WITH BUILT IN BRAKING CHOPPER 3AC200-240V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 7.5KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 11kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 472 X 200 X 237 (HXWXD), FSD PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120

Type of product:

Power modules

Product phase:

Active

Main Voltage:

200-240V AC

Main frequency:

50/60 Hz

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

42 A

Nom. power rating:

7.5 kW

Degree of protection:

IP20

Degree of protection:

IP20

Dimensions (cm):

20,00 x 23,70 x 47,20

Weight:

16.80 kg

Commodity Code:

85044086

Export Control Regulations (ECCN):
