Description for 6SL3210-1PE21-8UL0

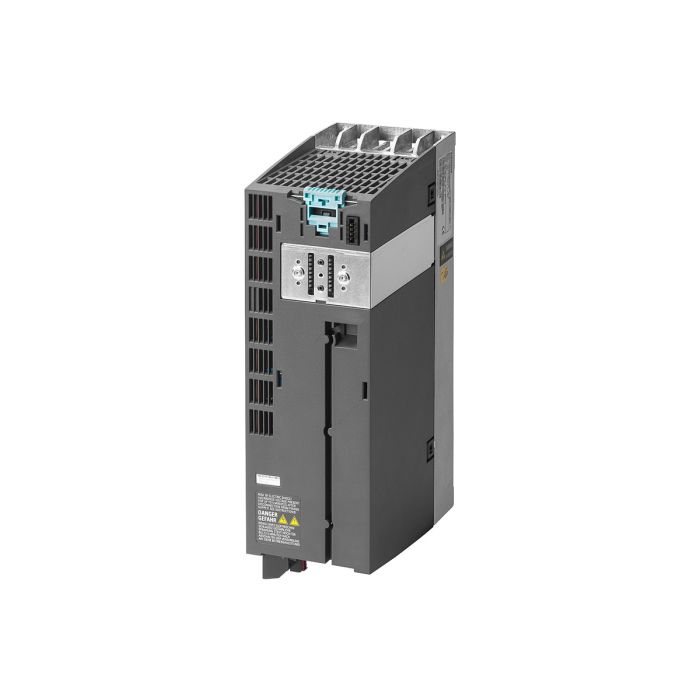

The Siemens 6SL3210-1PE21-8UL0 is a SINAMICS PM240-2 power module engineered for demanding industrial environments. This power module operates at 3AC 380-480V (+10/-10%) and supports frequencies from 47 to 63 Hz. Designed without an integrated filter, it features a built-in braking chopper for enhanced safety and control. The unit delivers high overload performance at 5.5 kW (200% for 3s, 150% for 57s, and 100% for 240s) at ambient temperatures ranging from -10°C to +50°C. For low overload applications, it provides 7.5 kW (150% for 3s, 110% for 57s, and 100% for 240s) at ambient temperatures up to +40°C. The compact dimensions of 291 x 100 x 165 mm (HxWxD) and FSB size make it suitable for installation in space-constrained settings. The module offers IP20 protection and is approved for use with CU Firmware Version V4.6. The Siemens 6SL3210-1PE21-8UL0 does not include a control unit or operator panel.

Brand: Siemens (mentioned twice for clarity and compliance)
High overload handling: 5.5 kW for short-duration peaks, supporting intensive production cycles (SKU: 6SL3210-1PE21-8UL0)
Integrated braking chopper enhances operational safety and control (SKU: 6SL3210-1PE21-8UL0)
Approved for CU firmware version V4.6, ensuring compatibility and long-term support (SKU: 6SL3210-1PE21-8UL0)

SINAMICS POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 5,5KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 7,5KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 291 X 100 X 165 (HXWXD), FSB PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.6

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-89%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Type of product:

Control units

Product phase:

Active

Main Voltage:

380-480V AC

Main frequency:

50/60 Hz

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

18 A

Nom. power rating:

5.5 kW

Degree of protection:

IP20

Degree of protection:

IP20

Dimensions (cm):

10,00 x 16,50 x 29,20

Weight:

2.70 kg

Commodity Code:

85044095

Export Control Regulations (ECCN):
