6SL3210-1PE23-3UL0_0

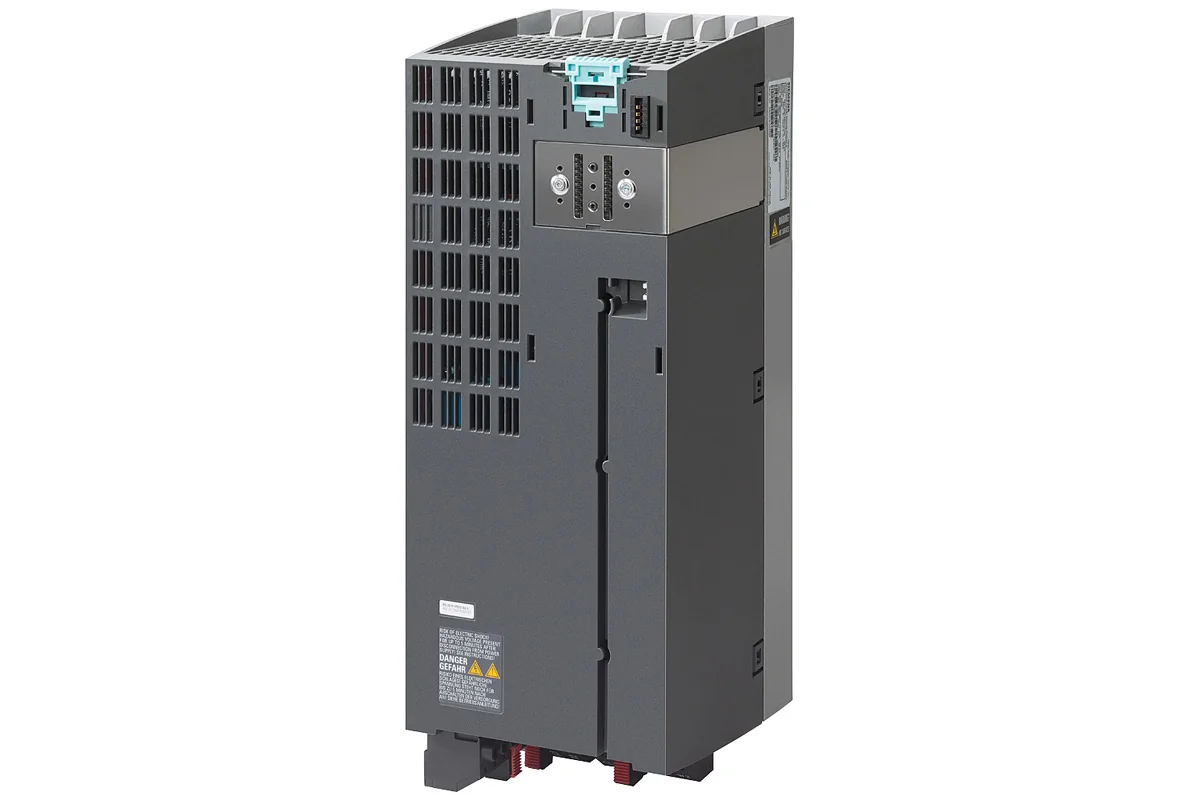

Siemens 6SL3210-1PE23-3UL0

SINAMICS POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING…
Condition
How does requesting a repair work?
  1. Add the repair to your cart and complete your order
  2. You'll receive an RMA form by email
  3. Pack your product with the RMA form and send it to us
  4. We repair and test it, then return it in 2 weeks
+ €250.00
Cashback
Excl. Tax
Transport and Handling Information

The transportation costs depend on the destination, purchase price, weight, shipping speed, and whether it is a pallet order.

Express shipping and rush orders

With express shipping, the product is delivered faster. For products that are not yet ready for shipping, you can place a rush order. These products still need to be revised.

A rush order is ready for shipping within 2 business days and can then be shipped express. This can be selected during checkout.
Other options available
Our supplier may have this item in stock. Ordering directly from them can take longer and may cost more.
Backorder from our suppliers
6SL3210-1PE23-3UL0_0
6SL3210-1PE23-3UL0 New factory sealed
99 In Stock | Expected within 3 weeks
€1,132.00 (Excl. Tax)
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

The SINAMICS POWER MODULE PM240-2 is a highly efficient power module designed for demanding industrial applications. This product operates at a voltage range of 380-480V AC with a frequency of 50/60 Hz, making it suitable for various electrical systems.

Featuring an innovative built-in braking chopper, it enhances performance while ensuring optimal overload capacities. With a high overload capability of 11 kW for short durations—200% for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds—it excels in environments requiring robust power management.

This module delivers superior reliability and is IP20 rated, providing adequate protection in industrial settings. The compact dimensions of 355 x 140 x 165 mm allow for efficient installation within existing setups.

Manufactured by Siemens, a trusted name in the electrical industry, this power module also boasts a nominal output current of 32 A and maximum output frequency of 550 Hz, ensuring it meets high-performance standards. Upgrade your systems with the SINAMICS POWER MODULE PM240-2 for unprecedented performance and reliability.

SINAMICS POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 11KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 15KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 355 X 140 X 165 (HXWXD), FSC PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.6
General
Manufacturer:
Siemens
Range:
Sinamics
Subrange:
G120
Type of product:
Power modules
PLM
Product phase:
Active
Drive
Main Voltage:
380-480V AC
Main frequency:
50/60 Hz
Number of phases input:
3
Max. output frequency:
550 Hz
Max. output voltage:
550 V
Nom. output current:
32 A
Nom. power rating:
11 kW
Degree of protection:
IP20
Degree of protection:
IP20
Logistics
Dimensions (cm):
14,00 x 16,50 x 35,50
Weight:
4.50kg
Commodity Code:
85044086
Export Control Regulations (ECCN):
N
EAN:
4042948666128
