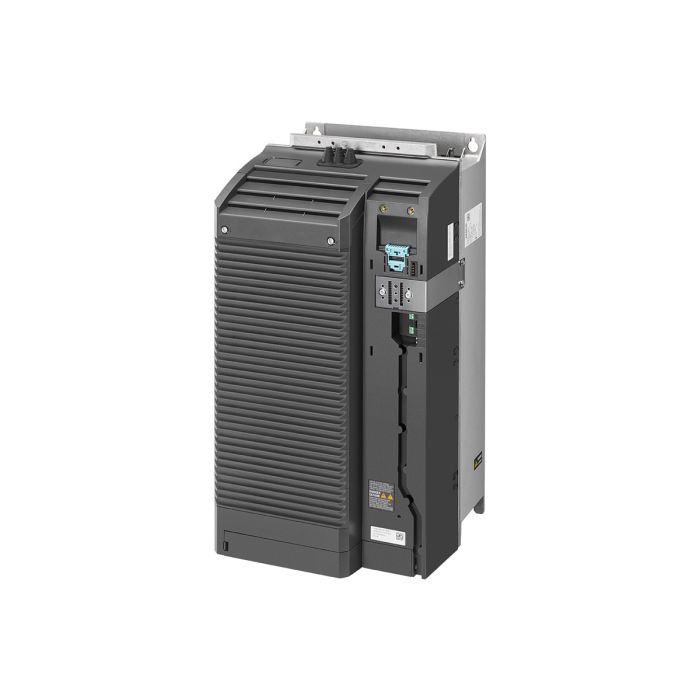

Description for 6SL3210-1PE28-8UL0

SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 37KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 45kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 551 X 275 X 237 (HXWXD), FSE PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8

The Siemens 6SL3210-1PE28-8UL0 is a robust SINAMICS G120 PM240-2 power module engineered for demanding industrial applications. Designed without an integrated filter, this module features a built-in braking chopper and supports a 3-phase AC input voltage range of 380–480V (+10% / -20%) at 47–63Hz. The 6SL3210-1PE28-8UL0 delivers high overload performance, with an output of 37 kW for 200% load (3 seconds), 150% (57 seconds), and 100% (240 seconds) at ambient temperatures from -20°C to +50°C. For low overload requirements, it provides 45 kW output for 150% load (3 seconds), 110% (57 seconds), and continuous 100% (240 seconds) operation at -20°C to +40°C.

With dimensions of 551 x 275 x 237 mm (H x W x D), this Siemens module offers IP20 degree of protection and is supplied without a control unit or panel, ensuring flexibility in system integration. The 6SL3210-1PE28-8UL0 is approved for use with CU firmware version V4.7 HF8, making it suitable for modern automation environments that require reliable and precise motor control.

Fast delivery from extensive stock for minimized production downtime
Refurbished options available, supported by a standard 2-year warranty for sustainability and reliability
High overload capacity and integrated braking chopper for demanding production processes

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120

Type of product:

Control units

Product phase:

Active

Main Voltage:

380-480V AC

Main frequency:

50/60 Hz

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

90 A

Nom. power rating:

37 kW

Degree of protection:

IP20

Degree of protection:

IP20

Dimensions (cm):

27,50 x 23,70 x 55,10

Weight:

25.90kg

Commodity Code:

85044086

Export Control Regulations (ECCN):

3A225
