6SL3210-5BB22-2UV0

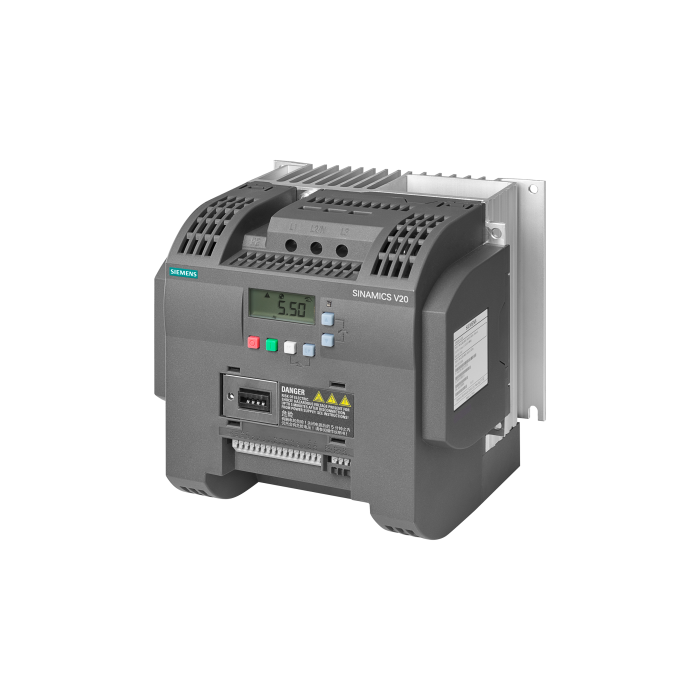

Siemens 6SL3210-5BB22-2UV0

SINAMICS V20 200-240V1AC-10/+10% 47-63Hz Rated power 2.2 with 150%…
Tell us what you need?

If this product is not available right now, our sourcing team can help find an alternative or create a special order for you.

Condition
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

The SINAMICS V20 is a versatile variable frequency drive designed for a wide range of applications in the electrical industry. With a rated power of 2.2 kW and the ability to handle a maximum output current of 11 A, it offers reliable performance for various tasks.

This model operates on a main voltage of 200-240V AC and a frequency of 50/60 Hz, making it suitable for global use. Its compact dimensions of 18.40 x 16.90 x 18.20 cm ensure that it fits seamlessly into any setup.

Equipped with an unfiltered I/O interface comprising 4 digital inputs, 2 digital outputs, 2 analog inputs, and 1 analog output, the SINAMICS V20 enhances connectivity and integration. It also supports fieldbus protocols such as USS and MODBUS RTU, allowing for better communication across systems.

The device boasts a degree of protection rated at IP20 and complies with UL standards, ensuring safety and durability in various environments. Please note that this product is phase-out and can no longer be produced, making now an opportune time to invest in the SINAMICS V20 for your operational needs.

Manufactured by Siemens in Germany, this drive exemplifies quality and reliability. Consider adding the SINAMICS V20 to your product line for enhanced efficiency in variable frequency drive applications.

SINAMICS V20 200-240V1AC-10/+10% 47-63Hz Rated power 2.2 with 150% overload for 60 sec. unfiltered I/O interface: 4 DI, 2 DO, 2 AI, 1 AO Fieldbus: USS/MODBUS RTU with built-in BOP Degree of protection IP20/UL Op Variable: FSC 184x 182x 169 (BxHxD)
General
Manufacturer:
Siemens
Range:
Sinamics
Subrange:
V20
Type of product:
Variable frequency drives
PLM
Product phase:
Phase-Out
Drive
Main Voltage:
200-240V AC
Main frequency:
50/60 Hz
Number of phases input:
1
Max. output frequency:
550 Hz
Max. output voltage:
240 V
Nom. output current:
11 A
Nom. power rating:
2.2 kW
Degree of protection:
IP20
Degree of protection:
IP20
Logistics
Dimensions (cm):
18,40 x 16,90 x 18,20
Weight:
2.30kg
Commodity Code:
85044095
Export Control Regulations (ECCN):
N
EAN:
6940408102934
