6SL3210-5BB23-0UV0

Need more units?

We will support you, please fill in this

Transport and Handling Information

The transportation costs depend on the destination, purchase price, weight, shipping speed, and whether it is a pallet order.

Express shipping and rush orders

With express shipping, the product is delivered faster. For products that are not yet ready for shipping, you can place a rush order. These products still need to be revised.

A rush order is ready for shipping within 2 business days and can then be shipped express. This can be selected during checkout.

Description for 6SL3210-5BB23-0UV0

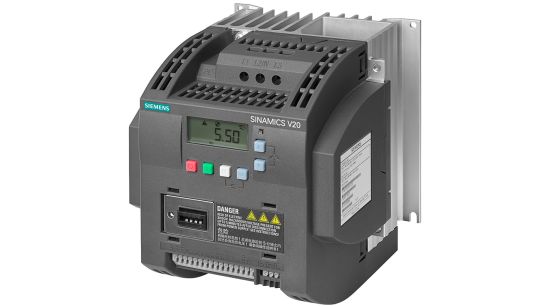

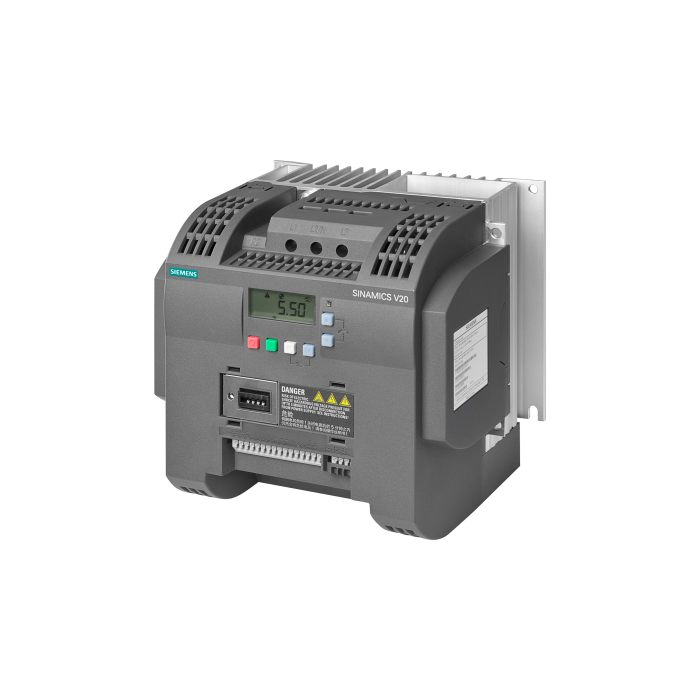

SINAMICS V20 200-240V1AC-10/+10% 47-63Hz Rated power 3.0 kW with 150% overload for 60 sec. unfiltered I/O interface: 4 DI, 2 DO, 2 AI, 1 AO Fieldbus: USS/MODBUS RTU with built-in BOP Degree of protection IP20/UL Op Variable: FSC 184x 182x 169 (BxHxD)

The SINAMICS V20 frequency converter from Siemens, model 6SL3210-5BB23-0UV0, is designed for efficient and reliable control of industrial motors in demanding environments. With a rated power of 3.0 kW and the capability to handle 150% overload for up to 60 seconds, it delivers robust performance for applications requiring variable speed. The device operates within a voltage range of 200-240V AC (single-phase) at 47-63Hz, and features an unfiltered design for flexible integration into existing setups.

Brand: Siemens
Quick delivery from extensive stock
2-year warranty available on refurbished models

The 6SL3210-5BB23-0UV0 offers versatile connectivity with four digital inputs, two digital outputs, two analog inputs, and one analog output. Communication is streamlined through integrated USS/MODBUS RTU fieldbus support, and the built-in Basic Operator Panel (BOP) enables straightforward on-site parameterization and monitoring. The device measures 184 mm in width, 182 mm in height, and 169 mm in depth, and is protected to IP20 and UL standards, making it suitable for installation in controlled environments.

By choosing the 6SL3210-5BB23-0UV0, project managers and production leaders benefit from Siemens' commitment to quality and reliability, ensuring minimal downtime in production processes. The 6SL3210-5BB23-0UV0 is well suited for a wide range of industrial applications, supporting both new installations and retrofit projects.

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-89%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

V20

Type of product:

Frequency converters

Product phase:

Phase-Out

Main Voltage:

200-240V AC

Main frequency:

50/60 Hz

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

240 V

Nom. output current:

13.6 A

Nom. power rating:

3 kW

Degree of protection:

IP20

Degree of protection:

IP20

Dimensions (cm):

18,40 x 16,90 x 18,20

Weight:

2.30kg

Commodity Code:

85044095

Export Control Regulations (ECCN):
