Description for 6SL3211-0AB22-2AB1

SINAMICS G110-CPM110 AC Drive, with integrated filter A 200-240 V 1 AC+10/-10% 47-63 Hz RS-485 interface (USS protocol) CT: 2.2 kW; VT: 2.2 kW CT overload: 150% 60 s 181x 184x 152 (HxWxD) degree of protection IP20 ambient temperature -10+50 C without BOP without analog input

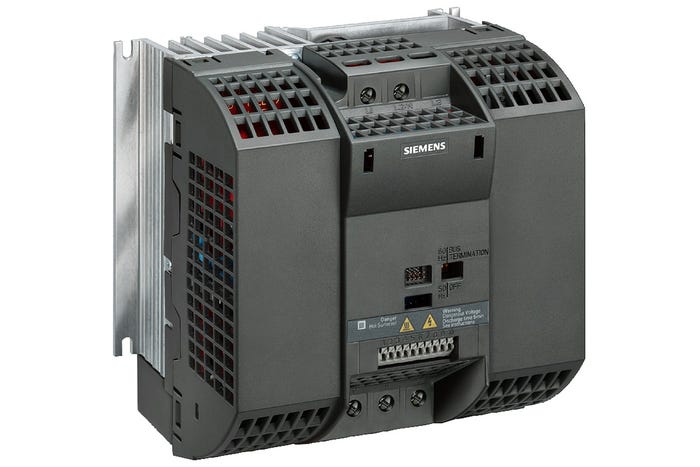

The Siemens 6SL3211-0AB22-2AB1 is a robust AC drive from the SINAMICS G110-CPM110 series, designed for reliable control of motor speed in demanding industrial environments. This unit operates at 200-240V single-phase AC (±10%) and supports frequencies from 47 to 63Hz. With a power rating of 2.2kW in both constant torque (CT) and variable torque (VT) applications, it ensures consistent performance under varying load conditions. The drive features a CT overload capacity of 150% for 60 seconds, providing operational flexibility during peak demands. Dimensions are 181 mm (height) x 184 mm (width) x 152 mm (depth), and it offers IP20 protection against solid objects. The 6SL3211-0AB22-2AB1 is equipped with an integrated filter A, supports RS485 communication via the USS protocol, and is designed for use without a basic operator panel (BOP) or analog input. The recommended ambient temperature range is -10°C to +50°C, making it suitable for various industrial settings.

Brand: Siemens (mentioned as required)
Large in-stock availability for rapid delivery—ideal for minimizing production downtime
Refurbished options available with a standard 2-year warranty for sustainable and cost-effective operations

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-89%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G110

Type of product:

AC drives

Is Z-Options Mandatory:

Product phase:

Phase-Out

Main Voltage:

200-240V AC

Main frequency:

50/60 Hz

Number of phases input:

Max. output frequency:

650 Hz

Max. output voltage:

650 V

Nom. output current:

11 A

Nom. power rating:

2.2 kW

Degree of protection:

IP20

Degree of protection:

IP20

Dimensions (cm):

18,40 x 15,20 x 18,10

Weight:

2.10kg

Commodity Code:

85044095

Export Control Regulations (ECCN):
