Description for 6SL3211-1NE21-8AL0

SINAMICS G120 Power Module PM230 with integrated Class A filter Degree of protection IP20/PT 380-480 V 3 AC +10/-10% 47-63 Hz Power low overload: 7.5kW at 150% 3s, 110% 57s, 100% 240 s; Ambient temperature 0 to +40 -¦C (LO) 345x 154x 171 (HxWxD), FSB without Control Unit and operating unit released for CU240B/E-2 and CU230P-2 Firmware version V4.4 or higher Note: PM230 supported no safety

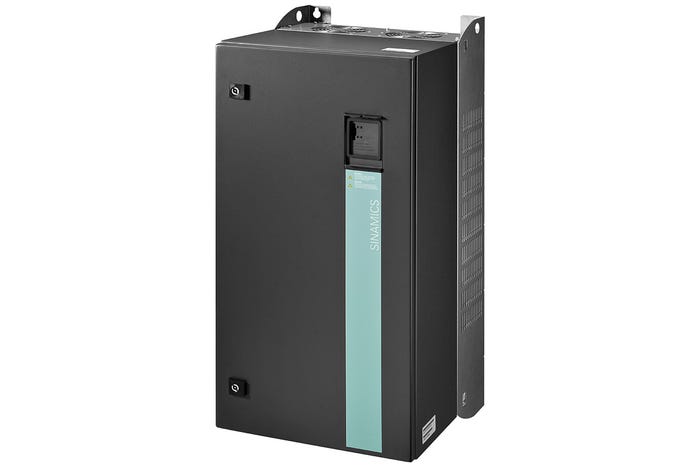

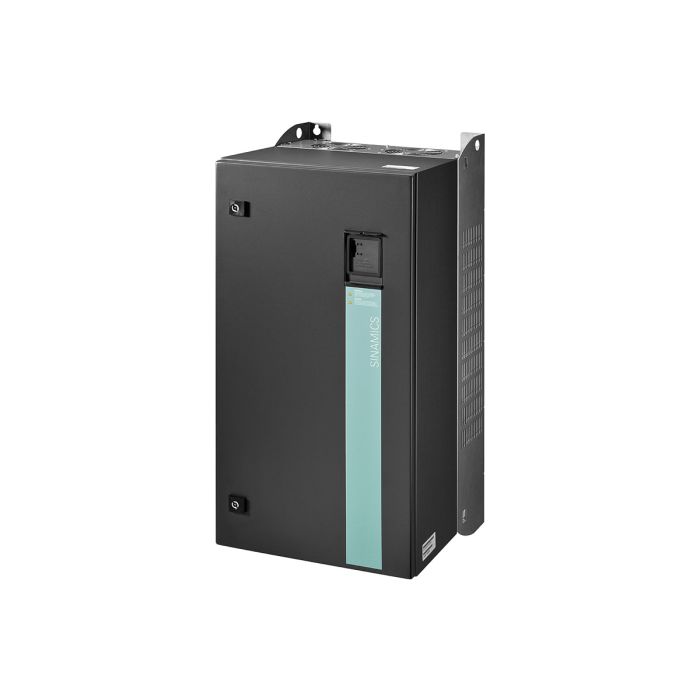

The Siemens 6SL3211-1NE21-8AL0 is a SINAMICS G120 Power Module PM230 designed for demanding industrial environments where reliable and efficient motor control is essential. This power module is equipped with an integrated Class A filter and offers a degree of protection rated at IP20. It operates at 380-480 V 3-phase AC (±10%) with a frequency range of 47-63 Hz, making it suitable for a wide range of production applications. The module supports a low overload operation with a capacity of 7.5 kW at 150% for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds. Measuring 345 x 154 x 171 mm (HxWxD), the 6SL3211-1NE21-8AL0 is compact and efficient, excluding the control and operating units. Compatible with CU240B/E-2 and CU230P-2 control units, this power module requires firmware version V4.4 or higher for optimal performance. Please note that the PM230 version does not include safety functions.

Brand: Siemens – ensures compatibility and reliability in industrial automation systems
Fast delivery from extensive stock minimizes downtime and keeps production moving
Standard 2-year warranty available when choosing a refurbished 6SL3211-1NE21-8AL0

The Siemens 6SL3211-1NE21-8AL0 is a trusted choice for project managers and production leaders seeking a robust power module for continuous production line operation.

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120

Type of product:

Power modules

Is Z-Options Mandatory:

Product phase:

Obsolete

Main Voltage:

380-480V AC

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

18 A

Nom. power rating:

5.5 kW

Degree of protection:

IP20

Degree of protection:

IP20

Dimensions (cm):

15,40 x 17,10 x 34,50

Weight:

4.20kg

Commodity Code:

85044086

Export Control Regulations (ECCN):
