Description for 6SL3223-0DE17-5AA0

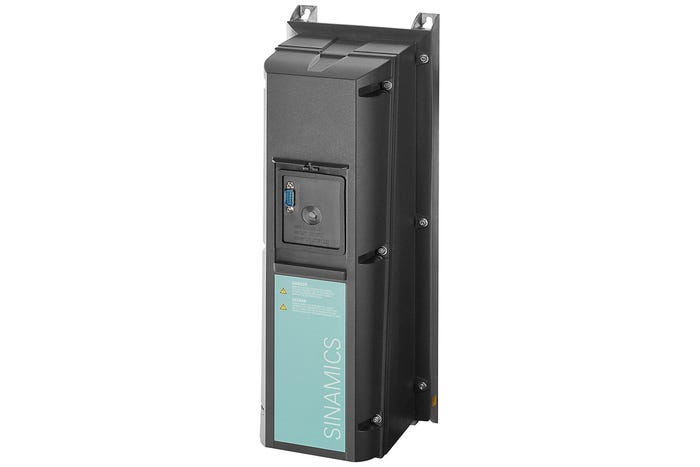

SINAMICS G120P Power Module PM230 with integrated Class A filter Degree of protection IP55/UL Type 12 380-480 V 3 AC +10/-10% 47-63 Hz Power low overload: 0.75kW at 150% 3s, 110% 57s, 100% 240 s; Ambient temperature 0 to +40 -¦C (LO) 460x 154x 249 (HxWxD), FSA without Control Unit and operating unit released for CU230P-2 Firmware version V4.3.2 or higher

The Siemens 6SL3223-0DE17-5AA0 is a robust SINAMICS G120P Power Module PM230, designed to support efficient and reliable control in industrial automation environments. Equipped with an integrated Class A filter and a high degree of protection (IP55/UL Type 12), this module is suitable for use in challenging industrial settings. The power module operates with a voltage range of 380-480 V 3 AC (+10/-10%) and a frequency range of 47-63 Hz, ensuring compatibility with a variety of production line requirements. The Siemens 6SL3223-0DE17-5AA0 supports low overload performance up to 0.75 kW, delivering 150% overload for 3 seconds, 110% for 57 seconds, and continuous 100% load for up to 240 seconds. Its ambient operating temperature ranges from 0°C to +40°C, making it adaptable for most production environments. The compact dimensions—460 mm height, 154 mm width, and 249 mm depth—allow for flexible installation even in space-constrained control cabinets. This unit is delivered without a Control Unit or operating panel and is compatible with CU230P-2 Control Units with firmware version V4.3.2 or higher.

Brand: Siemens, known for durable and high-quality industrial electronics
Fast delivery from large stock, reducing production downtime
Refurbished options available with a standard 2-year warranty for sustainable and cost-effective automation

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120P

Type of product:

Power modules

Product phase:

Obsolete

Main Voltage:

380-480V AC

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

2.2 A

Degree of protection:

IP55

Degree of protection:

IP55

Dimensions (cm):

15,40 x 24,90 x 46,00

Weight:

5.30kg

Commodity Code:

85044095

Export Control Regulations (ECCN):
