6SL3223-0DE27-5BA0

Condition

Repair

Select service ( €923.00 )

Description for 6SL3223-0DE27-5BA0

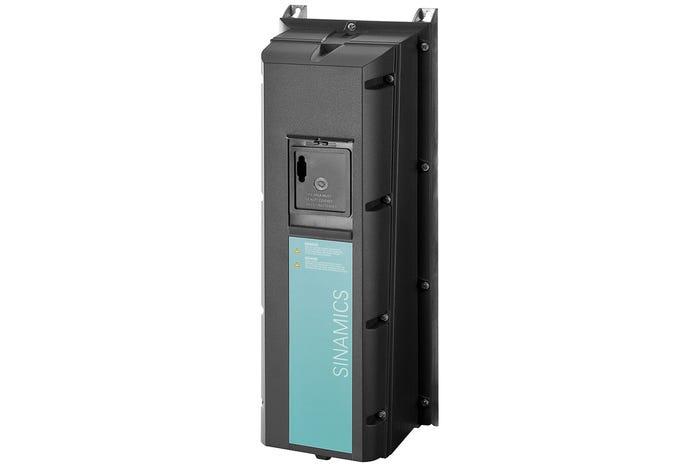

The Siemens 6SL3223-0DE27-5BA0 is a robust power module designed for demanding industrial environments. Belonging to the SINAMICS G120P series, this PM230 module includes an integrated Class B filter and offers a high degree of protection (IP55/UL Type 12), making it suitable for areas exposed to dust and water. Operating at 380–480 V 3 AC with a frequency range of 47–63 Hz, the 6SL3223-0DE27-5BA0 delivers reliable performance for low overload applications with a rated power output of 7.5 kW. It supports overload conditions up to 150% for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds, ensuring operational flexibility and safety.

The module is configured for use without a control or operating unit and is compatible with the CU230P-2 control unit. Its compact dimensions (540 x 180 x 249 mm) facilitate integration into various control cabinets. The 6SL3223-0DE27-5BA0 is approved for ambient temperatures from 0°C to +40°C and requires firmware version V4.3.2 or higher for optimal operation.

Brand: Siemens – renowned for reliable industrial automation solutions
High protection class (IP55/UL Type 12) for use in challenging environments
Comprehensive overload handling and compatibility with CU230P-2

The Siemens 6SL3223-0DE27-5BA0 offers quick availability from stock, supports sustainable operations through refurbishment options, and comes with a standard 2-year warranty on refurbished units.

SINAMICS G120P Power Module PM230 with integrated Class B filter Degree of protection IP55/UL Type 12 380-480 V 3 AC +10/-10% 47-63 Hz Power low overload: 7.5kW at 150% 3s, 110% 57s, 100% 240 s; Ambient temperature 0 to +40 -¦C (LO) 540x 180x 249 (HxWxD), FSB without Control Unit and operating unit released for CU230P-2 Firmware version V4.3.2 or higher

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120P

Type of product:

Power modules

Product phase:

Obsolete

Main Voltage:

380-480V AC

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

18 A

Nom. power rating:

5.5 kW

Degree of protection:

IP55

Degree of protection:

IP55

Dimensions (cm):

18,00 x 24,90 x 54,00

Weight:

6.30 kg

Commodity Code:

85044095

Export Control Regulations (ECCN):

3A999
