Siemens 6SL3223-0DE31-1AG1

Q: Can I buy on account at JC-Electronics?

Yes, under certain conditions. Contact the Sales team via sales@jc-electronics.com for more information.

SINAMICS G120P Power Module PM230 with integrated Class A fi

Condition

Repair (incl. JCertified refurbishment)

€733.00

Serial Number

Type additional information or questions about the repair here.

Urgent Repair

+ €250.00

Excl. Tax

Other options available

Our supplier may have this item in stock. Ordering directly from them can take longer and may cost more.

Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

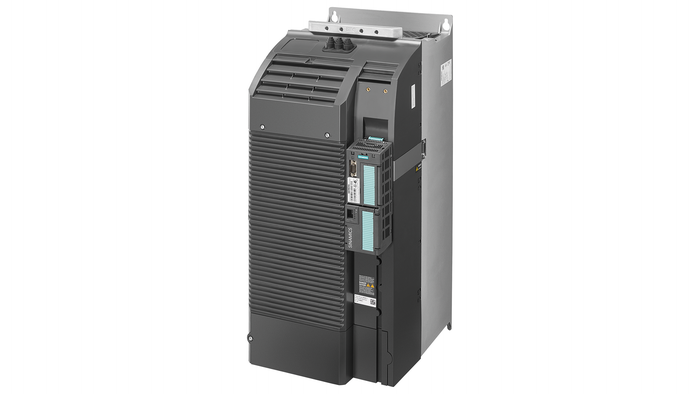

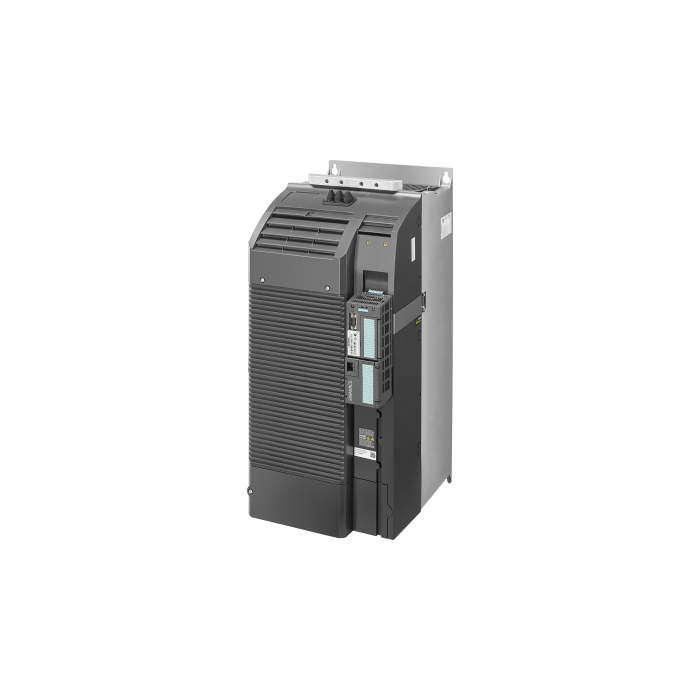

Introducing the SINAMICS G120P Power Module PM230, an essential component for your industrial applications. Designed by Siemens, this power module integrates a Class A filter, ensuring compliance with stringent electrical standards.

With a degree of protection rated at IP55/UL Type 12, it is built to withstand a variety of environmental conditions. Operating on a mains voltage of 380-480V AC and supporting a frequency range of 50/60 Hz, the PM230 is capable of a maximum output frequency of 550 Hz and output voltage up to 550 V.

This power module can handle low overloads efficiently: 11kW at 150% for 3 seconds, 110% for 57 seconds, and maintains 100% for up to 240 seconds. Its compact dimensions of 620 x 230 x 249 mm make it a potent choice for installations where space is a concern.

Suitable for ambient temperatures between -10°C and +40°C, the PM230 is ideal for various industrial settings. Ensure optimal performance by utilizing this power module with a CU230P-2 control unit utilizing firmware version V4.3.2 or higher.

SINAMICS G120P Power Module PM230 with integrated Class A filter Degree of protection IP55/UL Type 12 380-480 V 3 AC +10/-10% 47-63 Hz Power low overload: 11kW at 150% 3s, 110% 57s, 100% 240 s; Ambient temperature -10 to +40 -¦C (LO) 620x 230x 249 (HxWxD), FSC without Control Unit and operating unit released for CU230P-2 Firmware version V4.3.2 or higher

General

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120P

Type of product:

Power modules

PLM

Product phase:

Active

Drive

Main Voltage:

380-480V AC

Main frequency:

50/60 Hz

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

26 A

Nom. power rating:

7.5 kW

Degree of protection:

IP55

Degree of protection:

IP55

Logistics

Dimensions (cm):

68,60 x 25,90 x 29,60

Weight:

9.10kg

Commodity Code:

85044095

Export Control Regulations (ECCN):

EAN:

4042948671658
