Description for 6SL3223-0DE31-8AA0

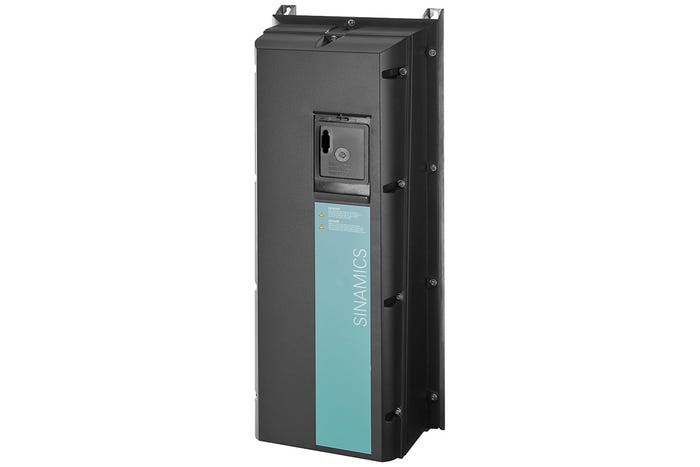

The Siemens 6SL3223-0DE31-8AA0 is a SINAMICS G120P Power Module PM230 designed for industrial applications requiring reliable and efficient motor control. This unit features an integrated Class A filter and is built to withstand challenging environments with its IP55/UL Type 12 degree of protection. Operating at 380-480 V 3 AC (+10/-10%) and 47-63 Hz, it delivers a power output of 18.5 kW under low overload conditions, handling up to 150% overload for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds. The module is engineered for ambient temperatures from 0 to +40 °C (LO), making it suitable for a range of industrial settings. Its compact dimensions of 620 x 230 x 249 mm (HxWxD) allow for flexible installation. The 6SL3223-0DE31-8AA0 is provided without a Control Unit and operating unit, and is compatible with the CU230P-2, requiring firmware version V4.3.2 or higher for optimal performance.

Brand: Siemens
Quick delivery thanks to extensive stock of 6SL3223-0DE31-8AA0 units
Available as a high-quality refurbished product with a standard 2-year warranty
Supports sustainable operations by offering reliable, refurbished solutions

SINAMICS G120P Power Module PM230 with integrated Class A filter Degree of protection IP55/UL Type 12 380-480 V 3 AC +10/-10% 47-63 Hz Power low overload: 18.5kW at 150% 3s, 110% 57s, 100% 240 s; Ambient temperature 0 to +40 °C (LO) 620x 230x 249 (HxWxD), FSC without Control Unit and operating unit released for CU230P-2 Firmware version V4.3.2 or higher

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120P

Type of product:

Power modules

Product phase:

Obsolete

Successor:

6SL3223-0DE31-8AA1

Predecessor:

6SE9523-7DS55

Supply voltage:

380-480V AC

Main Voltage:

380-480V AC

Main frequency:

47-63 Hz

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

38 A

Nom. power rating:

15 kW

Degree of protection:

IP55

Degree of protection:

IP55

Dimensions (cm):

23,00 x 24,90 x 62,00

Weight:

11.30 kg

Commodity Code:

85044088

Export Control Regulations (ECCN):

3A999
