6SL3223-0DE38-8AA0

Notify me when stock is available

Condition

Repair

Select service ( €4,481.00 )

Available on backorder

6SL3223-0DE38-8AA0 New factory sealed

€7,800.00 (Excl. Tax)

20+ In Stock

Expected within 5 weeks

Description for 6SL3223-0DE38-8AA0

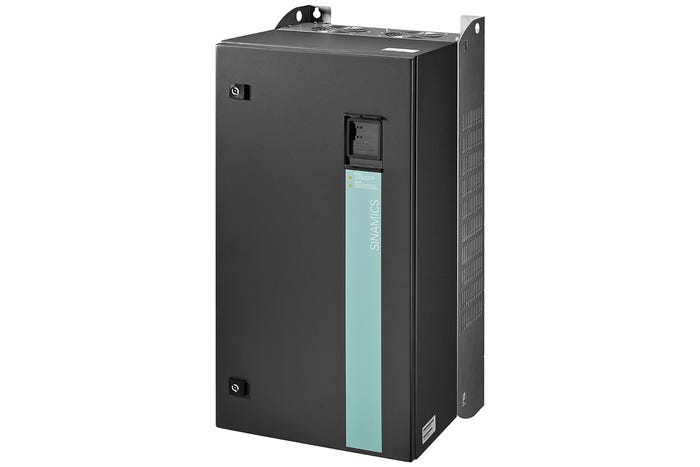

The Siemens 6SL3223-0DE38-8AA0 is a robust power module designed for demanding industrial environments. As part of the SINAMICS G120P series, this PM230 model includes a built-in Class A filter and offers IP55 / UL Type 12 protection, making it suitable for use in harsh conditions with exposure to dust and moisture. Operating at 3AC380-480V (+10/-10%), 47-63Hz, this module delivers a reliable output for low overload applications, providing 90 kW at 110% for 60 seconds and 100% for 240 seconds. The Siemens 6SL3223-0DE38-8AA0 is engineered to perform within an ambient temperature range of 0 to +40°C (low overload). Its compact dimensions (915 x 410 x 416 mm) make it easy to integrate into existing systems. This variant comes without a control unit and panel, and is approved for use with the CU230P-2 control unit, supporting firmware version V4.3.2.

Brand: Siemens – ensures compatibility and reliability in industrial automation.
High protection rating (IP55 / UL Type 12) – suitable for challenging production environments.
Flexible performance with low overload capacity – 90 kW for short-duration peak demands.

SINAMICS G120P POWER MODULE PM230 WITH BUILT IN CL. A FILTER PROTECTION IP55 / UL TYPE12 3AC380-480V +10/-10% 47-63HZ OUTPUT LOW OVERLOAD: 90KW FOR 110% 60S,100% 240S AMBIENT TEMP 0 TO +40 DEG C(LO) 915 X 410 X 416 (HXBXT), FSF WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU230P-2 FIRMWARE-VERSION V4.3.2

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120P

Type of product:

Power modules

Product phase:

Active

Predecessor:

6SE9531-7DS55

Main Voltage:

380-480V AC

Main frequency:

50/60 Hz

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

178 A

Nom. power rating:

75 kW

Degree of protection:

IP55

Degree of protection:

IP55

Dimensions (cm):

41,00 x 41,60 x 91,50

Weight:

69.40 kg

Commodity Code:

85044086

Export Control Regulations (ECCN):
