Description for 6SL3224-0BE13-7UA0

SINAMICS G120 PM 240 Power Module unfiltered with integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz power high overload: 0.37 kW at 200% 3 s, 150% 57 s, 100% 240 s; ambient temperature -10 to +50 C 173x 73x 145 (HxWxD), FSA degree of protection IP20 without Control Unit and BOP

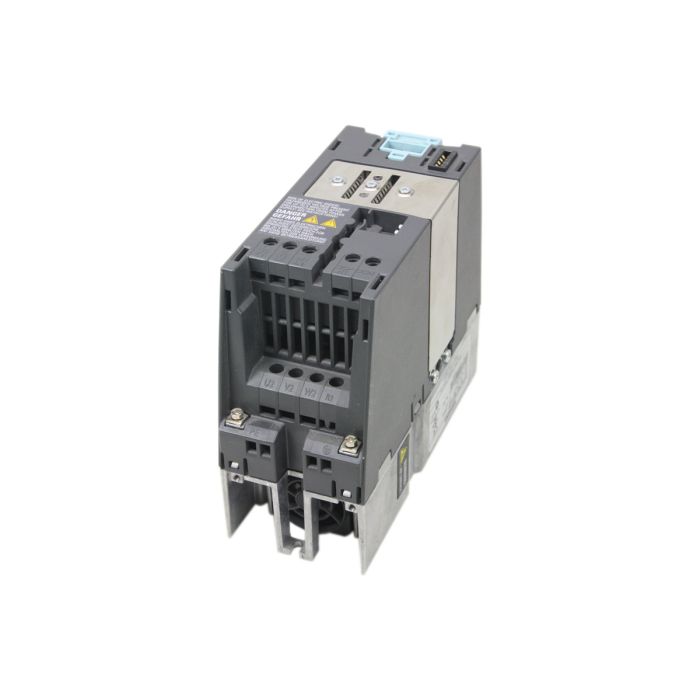

The Siemens 6SL3224-0BE13-7UA0 is a SINAMICS G120 PM240 Power Module designed for demanding industrial environments. This unfiltered power module features an integrated braking chopper and operates on a supply voltage of 380-480 V 3 AC (±10%) at 47-63 Hz. With a high overload capacity, it delivers 0.37 kW at 200% for 3 seconds, 150% for 57 seconds, and 100% for up to 240 seconds, ensuring reliable performance during peak loads. The device is engineered to function optimally within an ambient temperature range of -10 to +50 °C. Its compact dimensions (173 x 73 x 145 mm, HxWxD) and FSA frame size make it suitable for space-constrained installations. The module offers IP20 protection and is provided without a Control Unit or Basic Operator Panel (BOP).

Brand: Siemens
High overload capacity for demanding production applications
Integrated braking chopper enhances operational safety and efficiency
SKU 6SL3224-0BE13-7UA0 is available from large stock for fast delivery

The Siemens 6SL3224-0BE13-7UA0 supports sustainable production through the availability of refurbished options, all backed by a standard 2-year warranty. Project managers and production leaders benefit from the high reliability and rapid replacement possibilities that the 6SL3224-0BE13-7UA0 offers, ensuring minimal downtime in production processes.

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-89%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120

Type of product:

Control units

Is Z-Options Mandatory:

Product phase:

Phase-Out

Predecessor:

6SE6420-2UD13-7AA1

Supply voltage:

380-480V AC

Main Voltage:

380-480V AC

Main frequency:

47-63 Hz

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

1.3 A

Nom. power rating:

0.37 kW

Degree of protection:

IP20

Degree of protection:

IP20

Dimensions (cm):

7,30 x 14,50 x 17,30

Weight:

0.90kg

Commodity Code:

85049090

Export Control Regulations (ECCN):
