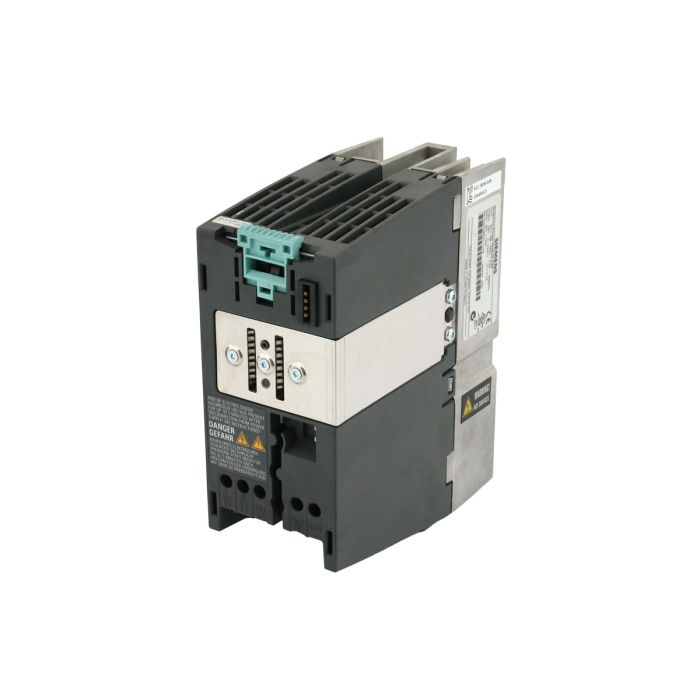

Description for 6SL3224-0BE21-1UA0

SINAMICS G120 PM 240 Power Module unfiltered with integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz power high overload: 1.1 kW at 200% 3 s, 150% 57 s, 100% 240 s; ambient temperature -10 to +50 C 173x 73x 145 (HxWxD), FSA degree of protection IP20 without Control Unit and BOP

The Siemens 6SL3224-0BE21-1UA0 is a SINAMICS G120 PM240 Power Module designed for industrial applications requiring reliable variable frequency drive operation. This unfiltered module features an integrated braking chopper and supports a voltage range of 380–480 V 3-phase AC (±10%) at 47–63 Hz. With high overload capabilities, it delivers 1.1 kW at 200% for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds, making it suitable for demanding production environments. The compact unit measures 173 x 73 x 145 mm (HxWxD) and is built to operate in ambient temperatures from -10 to +50 °C. The module offers FSA protection class IP20 and is supplied without the Control Unit and BOP, enabling flexible integration into existing systems. The 6SL3224-0BE21-1UA0 is part of Siemens’ trusted SINAMICS range, known for quality and durability in continuous industrial use.

Large stock and fast delivery ensure minimal production downtime for the 6SL3224-0BE21-1UA0.
Refurbished options with a standard 2-year warranty support sustainable operations and cost efficiency.
High overload performance and robust design meet the needs of project managers and production leaders in industrial settings.

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-89%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120

Type of product:

Control units

Is Z-Options Mandatory:

Product phase:

Phase-Out

Predecessor:

6SE6420-2UD21-1AA1

Supply voltage:

380-480V AC

Main Voltage:

380-480V AC

Main frequency:

47-63 Hz

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

3.1 A

Nom. power rating:

1.1 kW

Degree of protection:

IP20

Degree of protection:

IP20

Dimensions (cm):

7,30 x 14,50 x 17,30

Weight:

1.10kg

Commodity Code:

85049090

Export Control Regulations (ECCN):

Downloads

Datasheet 6SL3224-0BE21-1UA0 244.43 kB
