6SL3224-0BE23-0AA0

Need more units?

We will support you, please fill in this

Transport and Handling Information

The transportation costs depend on the destination, purchase price, weight, shipping speed, and whether it is a pallet order.

Express shipping and rush orders

With express shipping, the product is delivered faster. For products that are not yet ready for shipping, you can place a rush order. These products still need to be revised.

A rush order is ready for shipping within 2 business days and can then be shipped express. This can be selected during checkout.

Condition

Repair

Select service ( €491.00 )

Available on backorder

6SL3224-0BE23-0AA0 New factory sealed

€1,309.50 (Excl. Tax)

20+ In Stock

Expected within 2 weeks

Description for 6SL3224-0BE23-0AA0

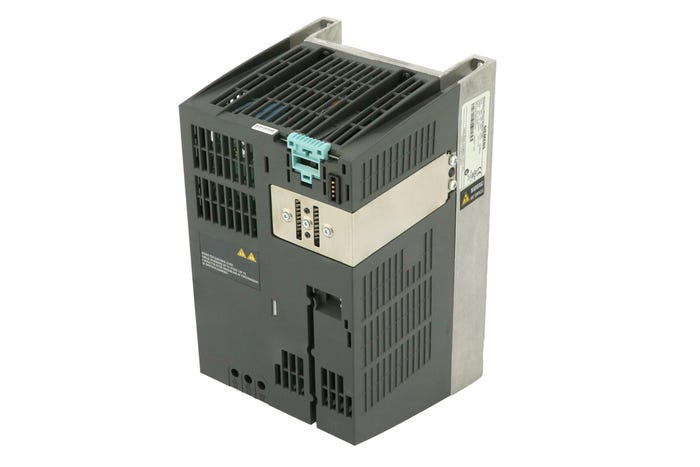

The Siemens 6SL3224-0BE23-0AA0 is a robust power module from the SINAMICS G120 series, engineered to deliver reliable performance in demanding industrial environments. This PM240 Power Module features an integrated filter (class A) and a built-in braking chopper, making it suitable for a wide range of motion control applications. Designed for 380-480 V 3-phase AC input (±10%, 47-63 Hz), it offers high overload capabilities with a rated power of 3.0 kW. The module can handle 200% overload for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds, ensuring stable operation even during peak load conditions. The compact enclosure (270 x 153 x 165 mm, HxWxD) and IP20 degree of protection make it easy to integrate into control cabinets. The 6SL3224-0BE23-0AA0 operates reliably in ambient temperatures from -10 to +50°C. Please note, it is supplied without a Control Unit and Basic Operator Panel (BOP).

Brand: Siemens
High overload tolerance for demanding applications
Integrated filter and braking chopper for enhanced system protection
Fast delivery and large stock availability
Refurbished options available with a standard 2-year warranty

SINAMICS G120 PM240 Power Module with integrated filter class A with integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz power high overload: 3.0 kW at 200% 3 s,150% 57 s,100% 240 s ambient temperature -10 to +50 °C 270 x 153 x 165 (HxWxD), FSB degree of protection IP20 without Control Unit and BOP

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120

Type of product:

Control units

Product phase:

Phase-Out

Predecessor:

6SE6420-2AD23-0BA1

Main Voltage:

380-480V AC

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

7.7 A

Nom. power rating:

3 kW

Degree of protection:

IP20

Degree of protection:

IP20

Dimensions (cm):

15,30 x 16,50 x 27,00

Weight:

4.10 kg

Commodity Code:

85044095

Export Control Regulations (ECCN):
