6SL3511-0PE24-0AM0

Need more units?

We will support you, please fill in this

Transport and Handling Information

The transportation costs depend on the destination, purchase price, weight, shipping speed, and whether it is a pallet order.

Express shipping and rush orders

With express shipping, the product is delivered faster. For products that are not yet ready for shipping, you can place a rush order. These products still need to be revised.

A rush order is ready for shipping within 2 business days and can then be shipped express. This can be selected during checkout.

Condition

Repair

Select service ( €714.00 )

Description for 6SL3511-0PE24-0AM0

SINAMICS G110D AC Drive, without Repair circuit with integrated Class A filter with integrated braking chopper with AS-Interface bus interface 380-500 V 3AC +10/-10% 47-63 Hz Power high overload: 4.0kW at 200% 3s, 150% 60S, 100% 300S; Ambient temperature -10 to +40 -¦C 210x 450x 165 (HxWxD), FSB Degree of protection IP65 without operator panel

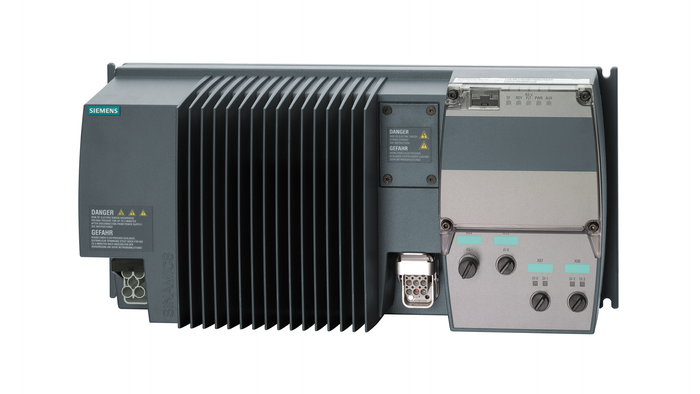

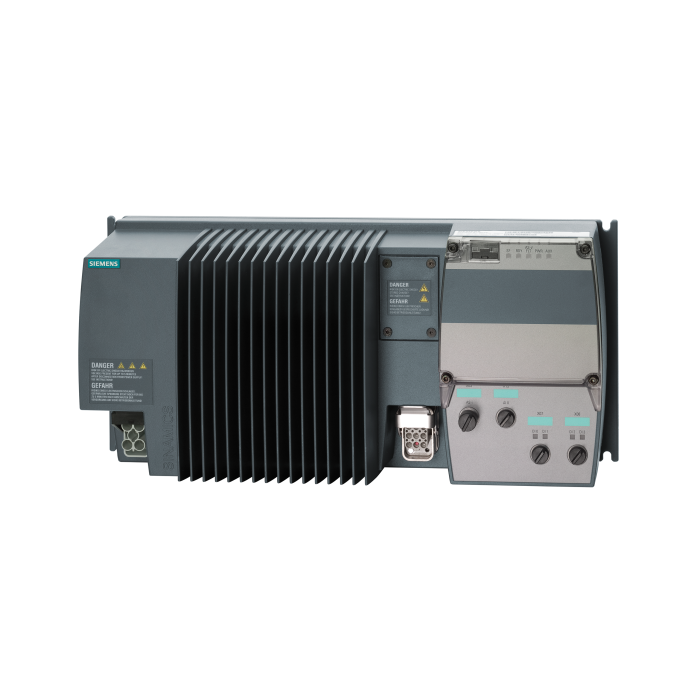

The Siemens 6SL3511-0PE24-0AM0 is a robust SINAMICS G110D AC Drive designed for demanding industrial environments. This drive operates without a repair circuit, features an integrated Class A filter, and includes an integrated braking chopper. The AS-Interface bus interface ensures easy integration into automated production systems. With a voltage range of 380–500 V 3AC (+10% / -10%) and a frequency range of 47–63 Hz, this Siemens unit delivers reliable high-overload performance: 4.0 kW at 200% for 3 seconds, 150% for 60 seconds, and 100% for 300 seconds. The 6SL3511-0PE24-0AM0 is compact, measuring 210 x 450 x 165 mm (HxWxD), and offers a high level of protection with its IP65 rating, making it suitable for installation in harsh industrial settings without the need for an operator panel. The ambient operating temperature ranges from -10°C to +40°C, supporting reliable operation in various factory environments. The Siemens 6SL3511-0PE24-0AM0 is ideal for project managers and production leaders seeking efficient, maintainable drive solutions with fast delivery and dependable quality.

High overload capability for demanding industrial applications (up to 200% for 3 seconds)
Integrated AS-Interface bus for streamlined system integration
Rugged IP65 protection for reliable use in challenging environments

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G110D

Type of product:

Frequency converters

Product phase:

Phase-Out

Main Voltage:

380-500V AC

Main frequency:

50/60 Hz

Number of phases input:

Max. output frequency:

650 Hz

Max. output voltage:

650 V

Nom. output current:

10.2 A

Nom. power rating:

4 kW

Degree of protection:

IP65

Degree of protection:

IP65

Dimensions (cm):

44,50 x 16,50 x 21,00

Weight:

7.30kg

Commodity Code:

85044095

Export Control Regulations (ECCN):
