7MF1565-3CA00-1AA1

Description for 7MF1565-3CA00-1AA1

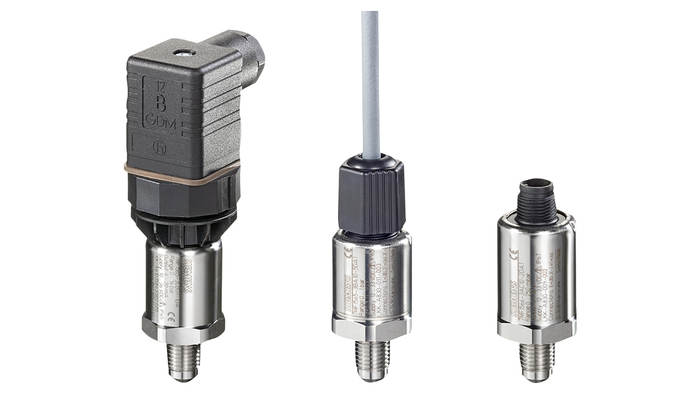

SITRANS P200 Transmitters for pressure and absolute pressure for general applications Non-linearity: 0,25 percent (typically) wetted parts material:ceramics, stainless steel plus sealing material; non-wetted parts material: stainless steel Measuring range for gauge: 0 to 10 bar, Overload- pressure 25 bar Output signal: 4 to 20 mA two-wire connection, power supply DC 7 to 33 V without explosion protection Electrical connection: plug to DIN EN 175301-803-A, threat for packed gland M16 (with connector) Process connection: G1/2" male to EN 837-1 (1/2" BSP male) (standard for metric pressure ranges mbar, bar) Sealing material between sensor and housing: Viton (FPM, Standard) Standard version

The SITRANS P200 Transmitter by Siemens is designed to provide accurate pressure measurements for a variety of general applications. With a non-linearity rate of just 0.25 percent, this transmitter ensures reliable performance in even the most demanding environments.

Constructed with high-quality wetted parts made of ceramics and stainless steel, along with durable sealing materials, the SITRANS P200 delivers exceptional durability and functionality. Its output signal ranges from 4 to 20 mA, utilizing a two-wire connection powered by a DC supply of 7 to 33 V.

Featuring a measuring range for gauge pressure from 0 to 10 bar and an overload capacity of 25 bar, this transmitter offers versatility for various applications. The electrical connection complies with DIN EN 175301-803-A standards, and the process connection is a G1/2" male thread as per EN 837-1, standard for metric pressure ranges.

Built in Germany, the SITRANS P200 is equipped with Viton sealing materials between the sensor and housing, ensuring optimal protection and performance in challenging conditions.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-72%

Resource use minerals and metals

-95%

Water use

-83%

Specifications

Manufacturer:

Siemens

Brands:

Siemens

Range:

Sitrans

Type of product:

Power supplies

Product phase:

Active

Dimensions (cm):

16,50 x 4,50 x 7,20

Weight:

0.20kg

Commodity Code:

85389091

Export Control Regulations (ECCN):
