Description for 7ML5426-0BF10-0AA0

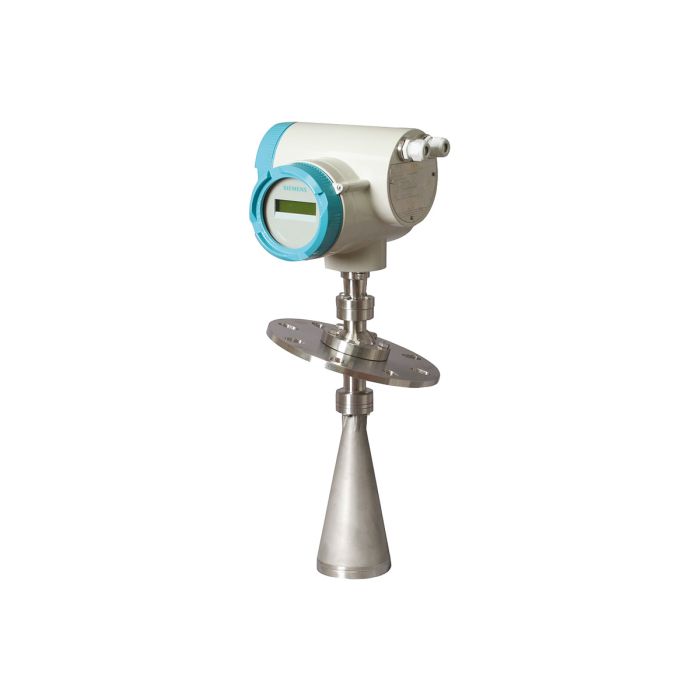

The Siemens SITRANS LR 460 (SKU: 7ML5426-0BF10-0AA0) is a robust 4-wire, 24 GHz FMCW radar level transmitter engineered for precise and continuous monitoring of solid materials in silos. With a measurement range up to 100 meters (329 feet), this device excels in demanding environments characterized by extreme dust and temperatures reaching up to 200°C (392°F). The universal, flat-faced process connection handles up to 0.5 bar (7.25 psi) maximum pressure and features an integral Easy Aimer ball for simplified installation and alignment.

Brand: Siemens – known for reliable industrial automation solutions
Designed for high-dust, high-temperature silo applications up to 200°C (392°F)
SKU 7ML5426-0BF10-0AA0 offers a 4" horn antenna with integrated self-cleaning (purge) connection

The Siemens 7ML5426-0BF10-0AA0 supports 4 to 20 mA analog output with HART communication, making it compatible with most industrial control systems. It operates on a 100 to 230 V AC power supply, using 2 x M20 x 1.5 cable inlets for straightforward installation. The transmitter is approved for general-purpose use and meets CSA US/C, Industry Canada, FCC, CE, and R&TTE standards, ensuring regulatory compliance. Note: The hand programmer for configuration is ordered separately.

SKU 7ML5426-0BF10-0AA0 ensures reliable performance in silos up to 100 meters high
Meets strict international safety and communication standards for industrial environments

SITRANS LR 460: 4-WIRE, 24 GHZ FMCW RADAR LEVEL TRANSMITTER FOR CONTINUOUS MONITORING OF SOLIDS IN SILOS TO A RANGE OF 100 M (329 FT). IDEAL FOR APPLICATIONS WITH EXTREME DUST AND HIGH TEMPERATURES TO 200 CEL. (392 F). ORDER HAND PROGRAMMER SEPARATELY! . PROCESS CONNECTION: UNIVERSAL, FLAT FACED, 0.5 BAR (7.25 PSI) MAXIMUM WITH INTEGRAL EASY AIMER BALL: 4" (100 MM) ANTENNA: 4" HORN ANTENNA, FITS 100 MM OR 4" NOZZLES PURGE (SELF CLEANING) CONNECTION: PURGE CONNECTION . OUTPUT/COMMUNICATION: 4 TO 20 MA, HART POWER SUPPLY/CABLE INLET: 100 TO 230 V AC, 2 X M20 X 1.5 APPROVALS: GENERAL PURPOSE, CSA US/C, INDUSTRY CANADA,FCC,CE, R&TTE

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-72%

Resource use minerals and metals

-93%

Water use

-83%

Specifications

Manufacturer:

Siemens

Range:

Sitrans

Type of product:

Power supplies

Product phase:

Phase-Out

Dimensions (cm):

35,00 x 25,00 x 25,00

Weight:

12.00 kg

Commodity Code:

85389091

Export Control Regulations (ECCN):
