6SL3210-1PH23-5UL0

Notify me when stock is available

Condition

Repair

Select service ( €1,841.00 )

Available on backorder

6SL3210-1PH23-5UL0 New factory sealed

€2,977.00 (Excl. Tax)

20+ In Stock

Expected within 4 weeks

Description for 6SL3210-1PH23-5UL0

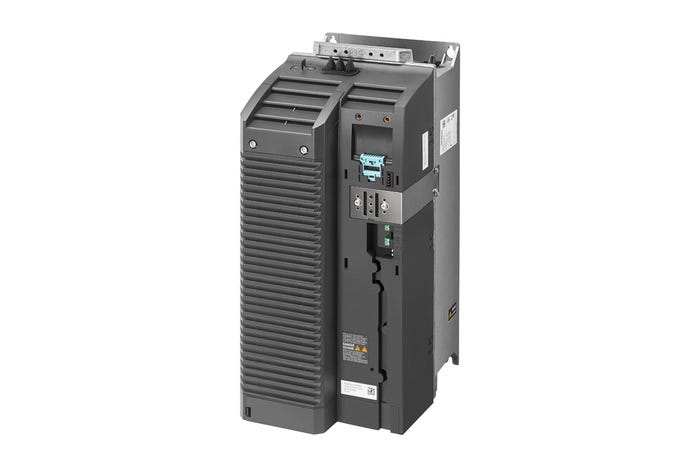

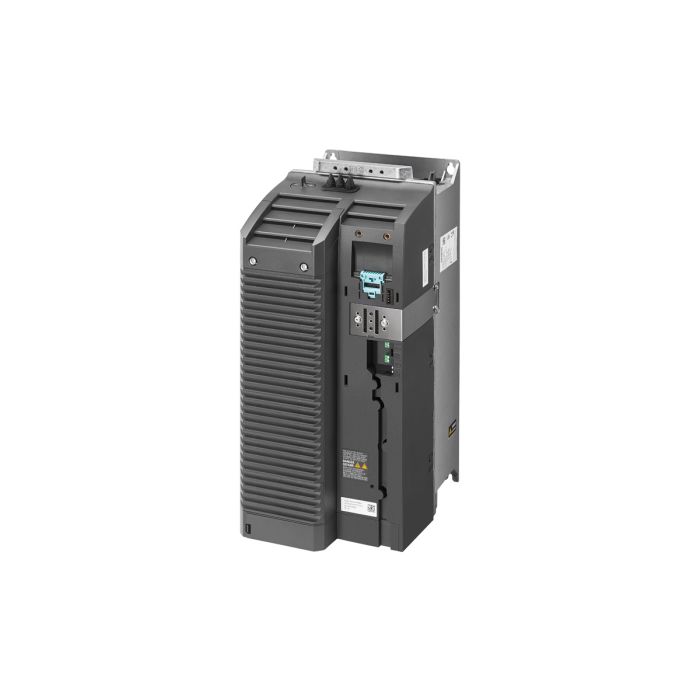

The Siemens 6SL3210-1PH23-5UL0 is a robust SINAMICS G120 Power Module PM240-2, engineered for demanding industrial automation environments. This power module operates without an integrated filter and features a built-in braking chopper, making it suitable for high-performance production lines. The device supports input voltages of 3AC 500-690V (+10/-20%) at 47-63Hz, and delivers high overload capabilities—22 kW output for 200% load over 3 seconds, 150% over 57 seconds, and 100% over 240 seconds in ambient temperatures from -20°C to +50°C (high overload mode). In low overload mode, it offers 30 kW output for 150% over 3 seconds, 110% over 57 seconds, and 100% over 240 seconds at temperatures from -20°C to +40°C.

Brand: Siemens—ensures compatibility and reliability in industrial applications.
SKU 6SL3210-1PH23-5UL0 available for fast delivery and direct integration into existing systems.
Compact design: 472 x 200 x 237 mm (HxWxD), IP20 protection, suitable for cabinet installation.
Refurbished Siemens 6SL3210-1PH23-5UL0 units include a standard 2-year warranty for added assurance.

The Siemens 6SL3210-1PH23-5UL0 is approved for CU firmware version V4.7 HF8 and does not include a control unit or panel, allowing for tailored integration based on specific production needs. This module is designed for reliability and extended performance, supporting continuous operation in industrial settings.

SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC500-690V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 22KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 30kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 472 X 200 X 237 (HXWXD), FSD PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120

Type of product:

Power modules

Product phase:

Active

Main Voltage:

500-690V AC

Main frequency:

50/60 Hz

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

35 A

Nom. power rating:

22 kW

Degree of protection:

IP20

Degree of protection:

IP20

Dimensions (cm):

20,00 x 23,70 x 47,20

Weight:

16.80 kg

Commodity Code:

85044086

Export Control Regulations (ECCN):

3A225
