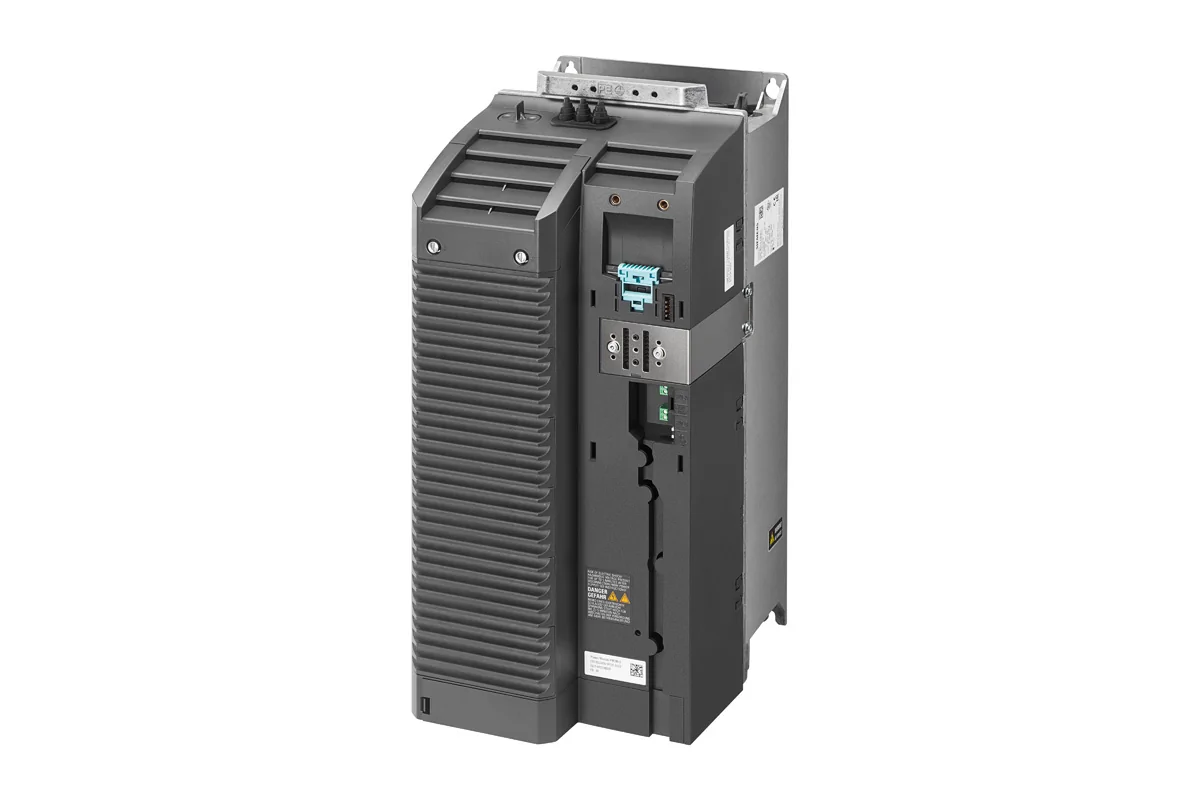

6SL3210-1PH24-2UL0

Notify me when stock is available

Condition

Repair

Select service ( €2,241.00 )

Available on backorder

6SL3210-1PH24-2UL0 New factory sealed

€3,617.51 (Excl. Tax)

20+ In Stock

Expected within 3 weeks

Description for 6SL3210-1PH24-2UL0

SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC500-690V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 30KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 37kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 472 X 200 X 237 (HXWXD), FSD PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8

The Siemens 6SL3210-1PH24-2UL0 is a robust SINAMICS G120 Power Module PM240-2 designed for demanding industrial environments. Featuring a built-in braking chopper and operating without a filter, this power module is suitable for 3-phase AC supply voltages from 500 to 690V (+10% / -20%) at frequencies between 47 and 63Hz. The Siemens 6SL3210-1PH24-2UL0 delivers reliable high overload performance, supporting up to 30kW for 200% overload (3 seconds), 150% (57 seconds), and 100% (240 seconds) at ambient temperatures ranging from -20°C to +50°C. For low overload requirements, it delivers 37kW at 150% (3 seconds), 110% (57 seconds), and 100% (240 seconds) at ambient temperatures up to +40°C.

Immediate availability from stock for minimized downtime
Refurbished options with a standard 2-year warranty for sustainability and cost savings
Compact design (472 x 200 x 237 mm) and IP20 protection for flexible installation in various production environments

The Siemens 6SL3210-1PH24-2UL0 is approved for CU firmware version V4.7 HF8 and is supplied without a control unit or panel, offering flexibility for integration into existing systems. This reliable power module is a preferred choice for project managers and production leaders seeking high-quality, durable, and quickly deployable solutions in industrial automation.

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120

Type of product:

Power modules

Product phase:

Active

Main Voltage:

500-690V AC

Main frequency:

50/60 Hz

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

42 A

Nom. power rating:

30 kW

Degree of protection:

IP20

Degree of protection:

IP20

Dimensions (cm):

20,00 x 23,70 x 47,20

Weight:

16.80kg

Commodity Code:

85044086

Export Control Regulations (ECCN):

3A225
