Siemens 6SL3210-1PH25-2UL0

SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN…

Condition

Repair (incl. JCertified refurbishment)

from €2,672.00

How does requesting a repair work?

Add the repair to your cart and complete your order
You'll receive an RMA form by email
Pack your product with the RMA form and send it to us
We repair and test it, then return it in 2 weeks

Serial Number

Type additional information or questions about the repair here.

Urgent Repair

+ €534.40

Cashback

Return nothing

€0.00

Return my old or faulty 6SL3210-1PH25-2UL0

- €450.00

Excl. Tax

Other options available

Our supplier may have this item in stock. Ordering directly from them can take longer and may cost more.

Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

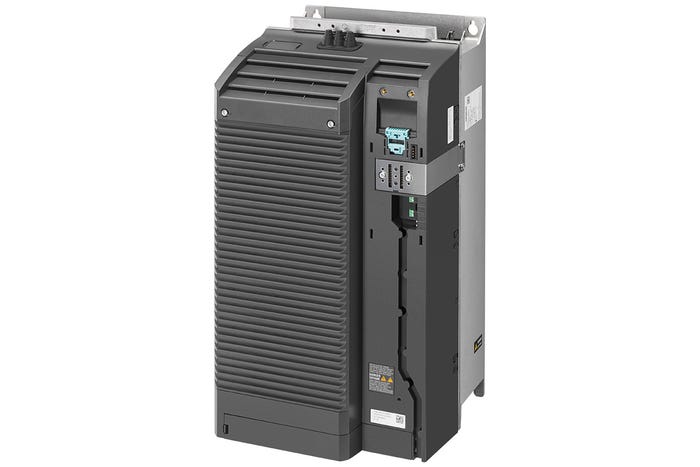

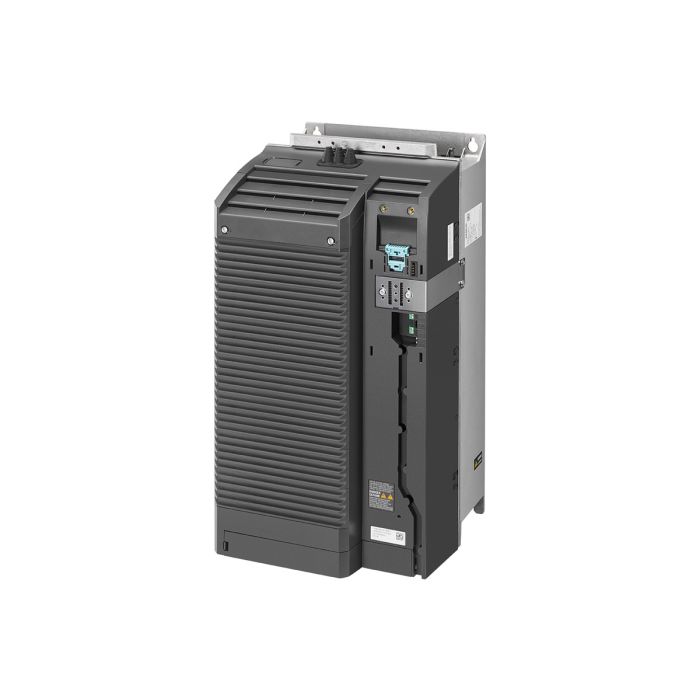

The Siemens 6SL3210-1PH25-2UL0 is a robust SINAMICS G120 PM240-2 power module designed for demanding industrial environments. This module operates without an integrated filter and includes a built-in braking chopper, supporting a 3-phase AC voltage range of 500–690V (+10% / -20%) at 47–63Hz. The 6SL3210-1PH25-2UL0 delivers high overload performance, providing 37 kW output for 200% load (3 seconds), 150% load (57 seconds), and 100% load (240 seconds) at ambient temperatures from -20°C to +50°C. For low overload, it offers 45 kW output for 150% load (3 seconds), 110% load (57 seconds), and 100% load (240 seconds) at ambient temperatures from -20°C to +40°C. The enclosure measures 551 x 275 x 237 mm (HxWxD) and features IP20 protection, ensuring reliable operation in industrial settings. The 6SL3210-1PH25-2UL0 is supplied without a control unit or panel and is approved for use with CU firmware version V4.7 HF8.

Brand: Siemens – known for quality and reliability in industrial automation
Fast delivery and large stock for critical production continuity
Standard 2-year warranty on refurbished Siemens 6SL3210-1PH25-2UL0 modules

SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC500-690V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 37KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 45kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 551 X 275 X 237 (HXWXD), FSE PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8

General

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120

Type of product:

Power modules

PLM

Product phase:

Active

Drive

Main Voltage:

500-690V AC

Main frequency:

50/60 Hz

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

52 A

Nom. power rating:

37 kW

Degree of protection:

IP20

Degree of protection:

IP20

Logistics

Dimensions (cm):

27,50 x 23,70 x 55,10

Weight:

25.90kg

Commodity Code:

85044086

Export Control Regulations (ECCN):

3A225

EAN:

4042948668320
