6SL3210-1PH26-2UL0

Notify me when stock is available

Condition

Repair

Select service ( €3,021.00 )

Available on backorder

6SL3210-1PH26-2UL0 New factory sealed

€5,083.00 (Excl. Tax)

20+ In Stock

Expected within 4 weeks

Description for 6SL3210-1PH26-2UL0

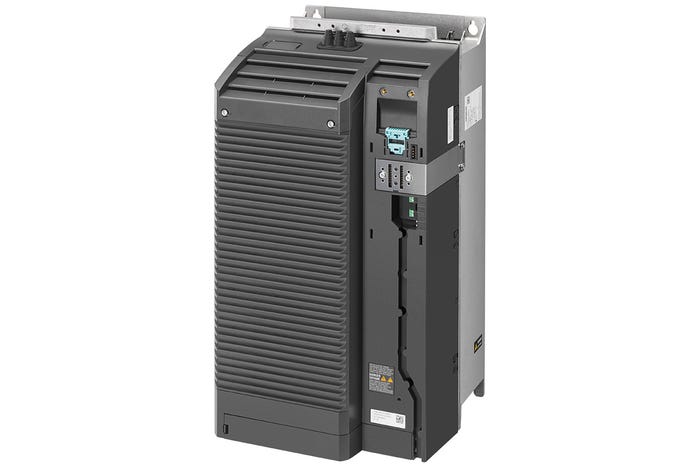

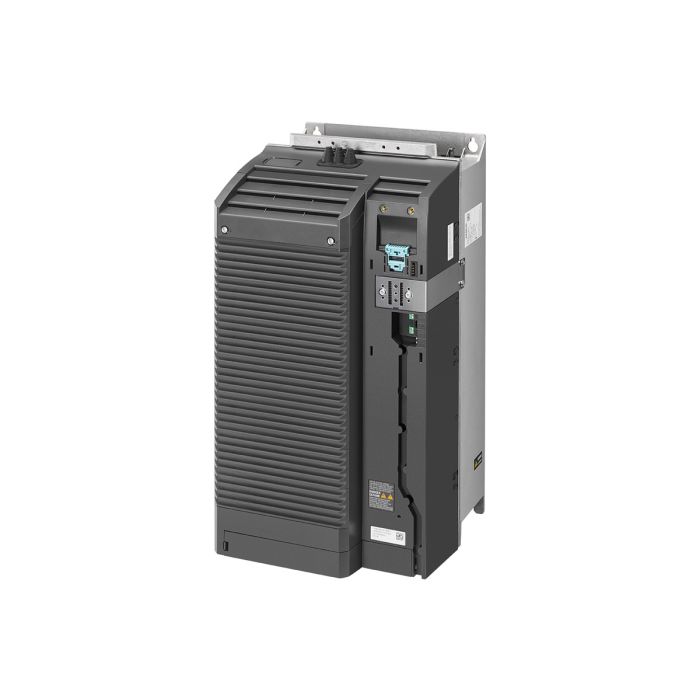

The Siemens 6SL3210-1PH26-2UL0 is a robust power module from the SINAMICS G120 series, designed for demanding industrial applications. This PM240-2 module operates without an integrated filter and features a built-in braking chopper. It accepts a three-phase AC input of 500–690 V (+10/-20%), at 47–63 Hz, supporting high overload conditions up to 45 kW for 200% load (3 seconds), 150% (57 seconds), and 100% (240 seconds) at ambient temperatures ranging from -20°C to +50°C. Under low overload, the 6SL3210-1PH26-2UL0 delivers up to 55 kW output, maintaining performance for 150% load (3 seconds), 110% (57 seconds), and 100% (240 seconds) at ambient temperatures up to +40°C.

This model measures 551 x 275 x 237 mm (HxWxD) and is rated with IP20 protection. The Siemens 6SL3210-1PH26-2UL0 is supplied without a control unit and panel, but is approved for use with CU firmware version V4.7 HF8. Its durable construction supports continuous operation in challenging production environments, making it a reliable component for production managers and project leaders seeking high-quality, readily available industrial electronics.

Brand: Siemens
Designed for heavy-duty cycles with high overload capacity
Large stock and fast delivery for minimized downtime
Meets strict quality standards and includes a 2-year warranty for refurbished units

SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC500-690V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 45KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 55kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 551 X 275 X 237 (HXWXD), FSE PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120

Type of product:

Power modules

Product phase:

Active

Main Voltage:

500-690V AC

Main frequency:

50/60 Hz

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

62 A

Nom. power rating:

45 kW

Degree of protection:

IP20

Degree of protection:

IP20

Dimensions (cm):

27,50 x 23,70 x 55,10

Weight:

25.90 kg

Commodity Code:

85044086

Export Control Regulations (ECCN):

3A225
