6SL3210-1PH32-5CL0

Notify me when stock is available

Repair

Select service ( €7,459.00 )

Available on backorder

6SL3210-1PH32-5CL0 New factory sealed

€11,122.32 (Excl. Tax)

20+ In Stock

Expected within 5 weeks

Description for 6SL3210-1PH32-5CL0

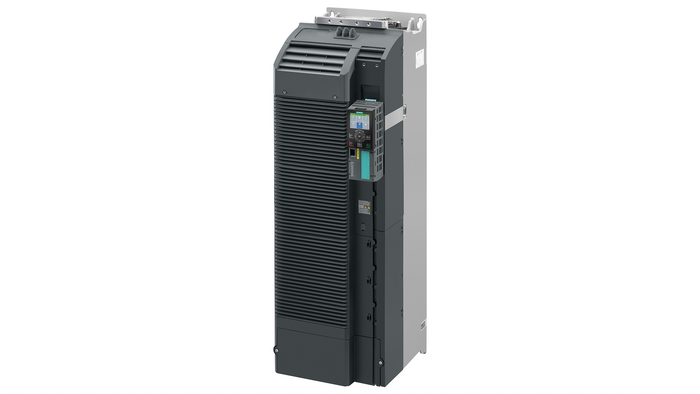

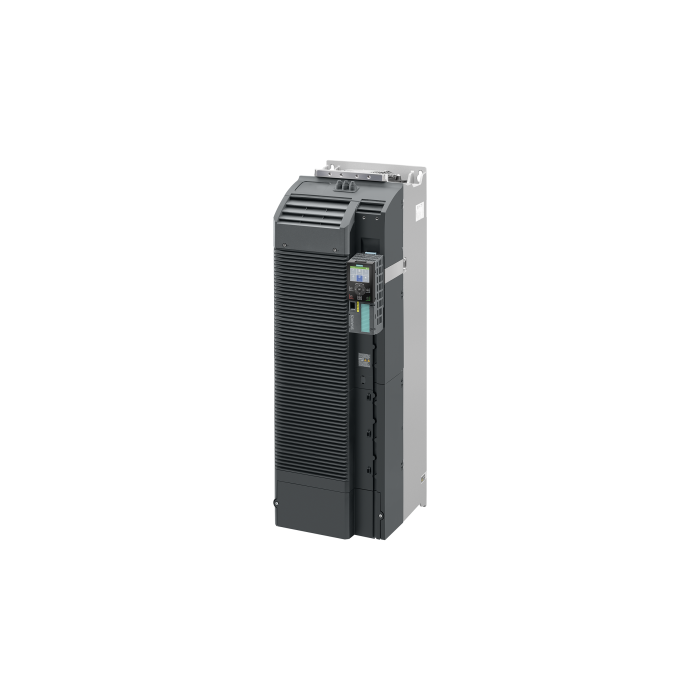

SINAMICS G120/S120 POWER MODULE PM240-2 FSG C3 WITH BUILT IN BRAKING CHOPPER 3AC500-690V+10/-10% 47-63Hz OUTPUT HIGH OVERLOAD: 200kW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 bis +50 DEG C (HO) OUTPUT LOW OVERLOAD: 250kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 bis +40 DEG C (LO) 1000x305x357 (HXWXD), FSG PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- Version V4.7 SP9 AND V5.1

The SINAMICS G120/S120 POWER MODULE PM240-2 FSG C3 is engineered for demanding industrial applications, providing exceptional performance with a built-in braking chopper. This robust power module is designed for a voltage range of 500-690V AC and operates efficiently within a frequency range of 50/60 Hz.

With a maximum output frequency of 550 Hz and a nominal output current of 250 A, it supports high overload capacities, allowing for 200 kW for short durations. This makes it ideal for applications requiring intense power surges.

Additionally, the module is protected according to IP20 standards, ensuring reliability in various operating environments. Its dimensions of 1000 x 305 x 357 mm and lightweight design facilitate easy integration into existing systems, making it a preferred choice for engineering professionals.

Manufactured by Siemens in Germany, the SINAMICS series, particularly the G120 range, is synonymous with quality and efficiency in the electrical industry. For projects requiring endurance and reliability, this power module stands out as the optimal solution.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Brands:

Siemens

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120

Type of product:

Power modules

Product phase:

Active

Main Voltage:

500-690V AC

Main frequency:

50/60 Hz

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

250 A

Nom. power rating:

0.2

Degree of protection:

IP20

Degree of protection:

IP20

Dimensions (cm):

30,50 x 35,70 x 100,00

Weight:

129.70kg

Commodity Code:

85044095

Export Control Regulations (ECCN):

EAR99
