6SL3210-1RE31-1AL0

Notify me when stock is available

Condition

Repair

Select service ( €2,914.00 )

Available on backorder

6SL3210-1RE31-1AL0 New factory sealed

€4,875.00 (Excl. Tax)

20+ In Stock

Expected within 4 weeks

Description for 6SL3210-1RE31-1AL0

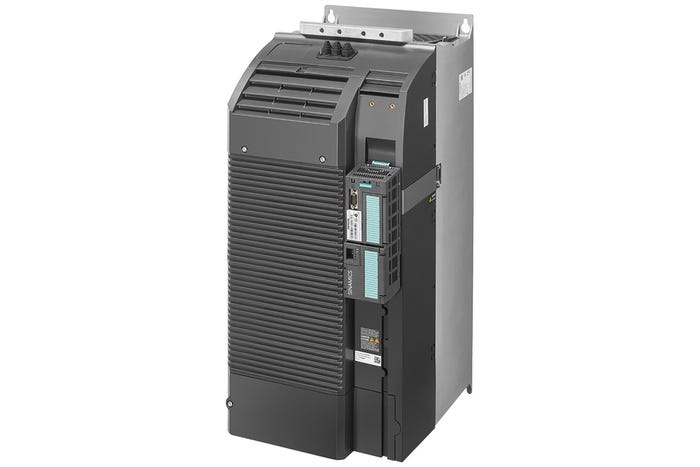

The Siemens 6SL3210-1RE31-1AL0 is a robust SINAMICS G120 power module, engineered for demanding industrial environments. This module features an integrated class A filter and operates with a voltage input of 3AC 380–480V (+10%/-20%) at 47–63Hz. Designed for flexible use, it provides high overload capability with a 45 kW output for 150% load over 60 seconds or 100% over 240 seconds at ambient temperatures from -20°C to +50°C. For lower overloads, it delivers 55 kW at 135% for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds within -20°C to +40°C. The 6SL3210-1RE31-1AL0 measures 551 x 275 x 237 mm (HxWxD) and is protected to IP20 standards, ensuring safe installation in control cabinets. This power module is supplied without a control unit or panel and is suitable for use with CU Firmware Version V4.7 SP6 HF1.

Brand: Siemens (mentioned twice for clarity and compliance)
SKU 6SL3210-1RE31-1AL0 available from stock for rapid delivery, minimizing production downtime
Refurbished options with a standard 2-year warranty support sustainable operations
Siemens 6SL3210-1RE31-1AL0 offers high reliability with proven quality for critical production processes

The Siemens 6SL3210-1RE31-1AL0 is well-suited for project managers and production leaders looking for a dependable power module with flexible overload capabilities and fast availability.

SINAMICS G120 POWER MODULE PM240P-2 WITH BUILT IN CL. A FILTER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 45KW FOR 150% 60S, 100% 240S; AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 55kW FOR 135% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 551x 275x 237 (HXWXD), FSE PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 SP6 HF1

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120

Type of product:

Power modules

Product phase:

Active

Main Voltage:

380-480V AC

Main frequency:

50/60 Hz

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

110 A

Nom. power rating:

45 kW

Degree of protection:

IP20

Degree of protection:

IP20

Dimensions (cm):

27,50 x 23,70 x 55,10

Weight:

32.70 kg

Commodity Code:

85044086

Export Control Regulations (ECCN):

EAR99
