6SL3210-1RE31-5AL0

Need more units?

We will support you, please fill in this

Transport and Handling Information

The transportation costs depend on the destination, purchase price, weight, shipping speed, and whether it is a pallet order.

Express shipping and rush orders

With express shipping, the product is delivered faster. For products that are not yet ready for shipping, you can place a rush order. These products still need to be revised.

A rush order is ready for shipping within 2 business days and can then be shipped express. This can be selected during checkout.

Condition

Repair

Select service ( €3,469.00 )

Available on backorder

6SL3210-1RE31-5AL0 New factory sealed

€5,934.50 (Excl. Tax)

20+ In Stock

Expected within 4 weeks

Description for 6SL3210-1RE31-5AL0

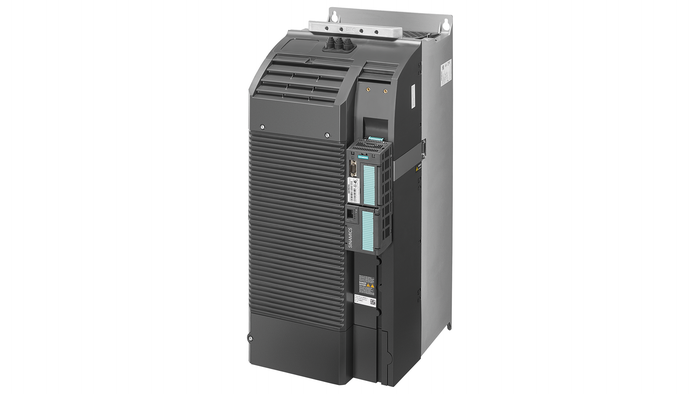

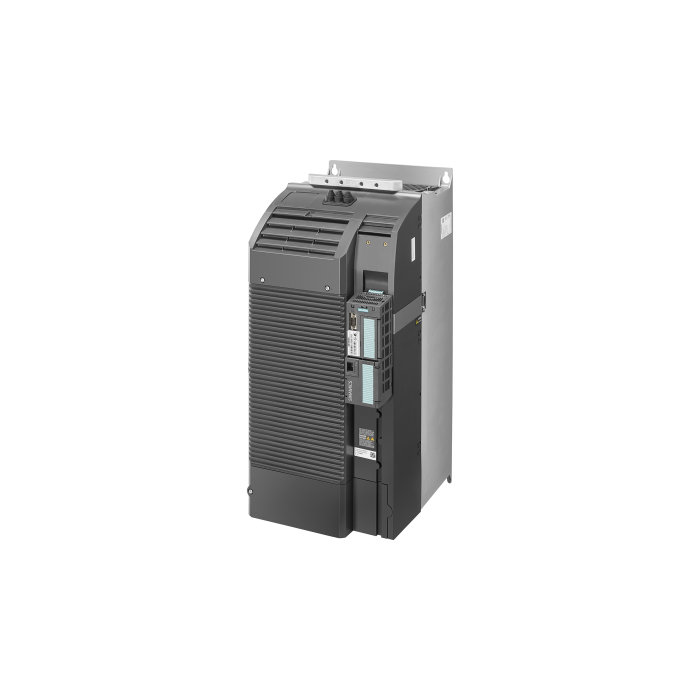

The Siemens 6SL3210-1RE31-5AL0 is a robust SINAMICS G120 Power Module PM240P-2, engineered for demanding industrial applications. This power module is equipped with an integrated Class A filter and supports a 3-phase AC input of 380-480V (+10/-20%), operating efficiently at frequencies between 47 and 63 Hz. Designed for high performance, the 6SL3210-1RE31-5AL0 delivers a high overload output of 55 kW for 60 seconds at 150% load and 100% output for up to 240 seconds at ambient temperatures from -20°C to +50°C. In low overload mode, it provides 75 kW for 3 seconds at 135% load, 110% output for 57 seconds, and continuous 100% output for 240 seconds at ambient temperatures from -20°C to +40°C.

With dimensions of 708 x 305 x 357 mm (H x W x D) and a frame size of FSF, the Siemens 6SL3210-1RE31-5AL0 features IP20 protection, making it suitable for installation in controlled environments. This module is delivered without a control unit and panel, and it is approved for use with CU firmware version V4.7 SP6 HF1. The product’s reliable construction aligns with Siemens’ reputation for quality and durability, supporting efficient operation of production lines and processes.

Brand: Siemens – known for high reliability and industrial-grade performance
Rapid availability thanks to large stock and fast delivery options
Option for refurbished units with standard 2-year warranty, contributing to sustainable operations

SINAMICS G120 POWER MODULE PM240P-2 WITH BUILT IN CL. A FILTER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 55KW FOR 150% 60S, 100% 240S; AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 75kW FOR 135% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 708x 305x 357 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 SP6 HF1

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120

Type of product:

Power modules

Product phase:

Active

Main Voltage:

380-480V AC

Main frequency:

50/60 Hz

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

145 A

Nom. power rating:

55 kW

Degree of protection:

IP20

Degree of protection:

IP20

Dimensions (cm):

30,50 x 35,70 x 70,80

Weight:

76.70 kg

Commodity Code:

85044086

Export Control Regulations (ECCN):

EAR99
