6SL3210-1RE32-5AL0

Condition

Repair

Select service ( €4,897.00 )

Description for 6SL3210-1RE32-5AL0

SINAMICS G120 POWER MODULE PM240P-2 WITH BUILT IN CL. A FILTER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 110KW FOR 150% 60S, 100% 240S; AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 132kW FOR 135% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 708x 305x 357 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 SP6 HF1

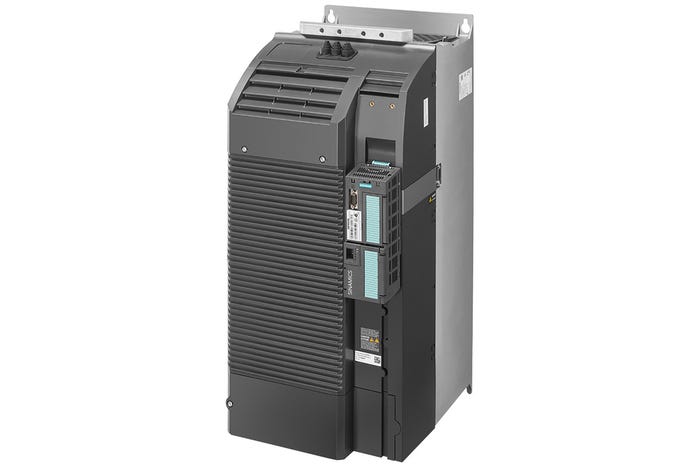

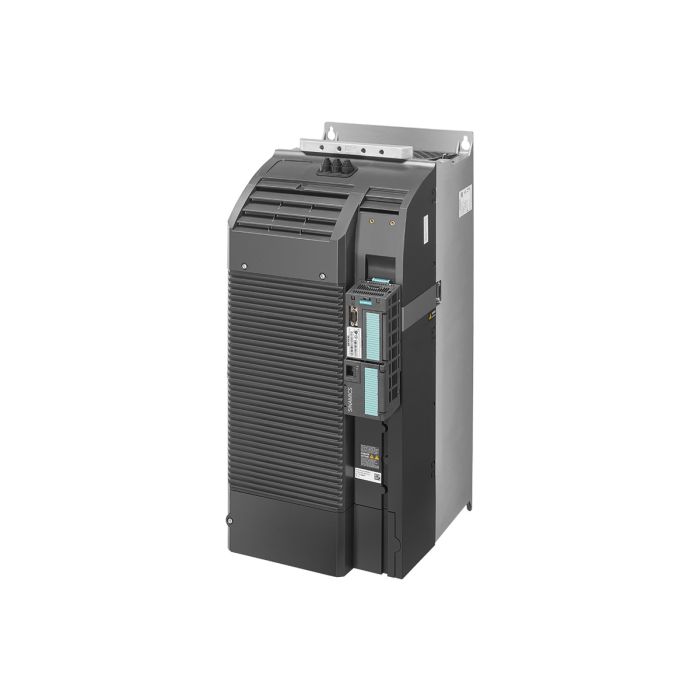

The Siemens 6SL3210-1RE32-5AL0 is a robust SINAMICS G120 Power Module PM240P-2, designed for demanding industrial automation environments. This power module features an integrated Class A filter and operates on a 3-phase supply voltage of 380–480V AC (+10%/–20%) at 47–63 Hz. With high overload capacity, the 6SL3210-1RE32-5AL0 delivers 110 kW for 60 seconds at 150% load and supports continuous operation at 100% load for up to 240 seconds, making it suitable for applications with fluctuating power requirements.

The 6SL3210-1RE32-5AL0 also offers a low overload mode, providing 132 kW for 3 seconds at 135% load, ensuring flexibility for variable operational demands. The ambient temperature range extends from –20°C to +50°C for high overload (HO) and –20°C to +40°C for low overload (LO), enabling reliable performance in diverse industrial settings. With dimensions of 708 x 305 x 357 mm (HxWxD), this FSF-sized module offers IP20 protection and does not include a control unit or operator panel. It is approved for use with CU firmware version V4.7 SP6 HF1.

Brand: Siemens—proven reliability in industrial electronics
Rapid delivery from extensive stock of Siemens 6SL3210-1RE32-5AL0 units
Refurbished options available with a standard 2-year warranty for cost-effective, sustainable solutions

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120

Type of product:

Power modules

Product phase:

Active

Main Voltage:

380-480V AC

Main frequency:

50/60 Hz

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

250 A

Nom. power rating:

110 kW

Degree of protection:

IP20

Degree of protection:

IP20

Dimensions (cm):

30,50 x 35,70 x 70,80

Weight:

78.90kg

Commodity Code:

85044086

Export Control Regulations (ECCN):

EAR99
