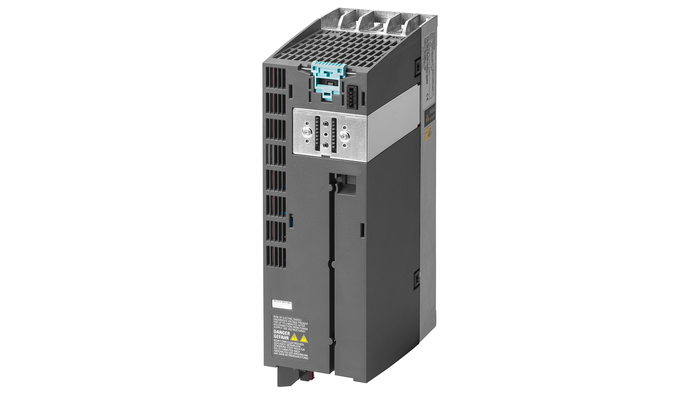

Siemens Sinamics Drives - Power Module PM240-2 with
SINAMICS Power Module PM240-2 with integrated Class A filter with…More information
Over 300.000 products
fast & secure
New & refurbished
with 2 year warranty
SINAMICS Power Module PM240-2 with integrated Class A filter with integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz Power high overload: 5.5kW at 200% 3s, 150% 57s, 100% 240 s; Ambient temperature -10 to +50 -¦C, power low overload: 7.5kW at 150% 3s, 110% 57s, 100% 240 s; Ambient temperature -10 to +40 -¦C 345x 154x 171 (HxWxD), FSB Degree of protection IP20-PT without Control Unit and operating unit Released as of CU firmware version V4.6
|Type of product||Power modules|
|Dimensions (cm)||15,40 x 17,10 x 34,50|
|Country of Manufacture||Germany|
|Export Control Regulations (ECCN)||N|
|Number of phases input||3|
|Main frequency||50/60 Hz|
|Nom. power rating||5.5 kW|
|Nom. output current||18 A|
|Max. output frequency||550 Hz|
|Max. output voltage||550 V|
|Degree of protection||IP20|
Product Questions (8)
What does drive repair cost at JC-Electronics?
Repairing a drive is different for each item and status of the product. As a result, the cost of the repair is also different. For a quote please contact our Customer Service.
On average, how long does it take to have a drive repaired by JC-Electronics?
Having a drive repaired currently takes 12 weeks at JC-Electronics. Emergency repair to fix a drive takes approximately 5-8 business days. For a quote, please contact our Customer Service Department.
What is and does a drive do?
A drive, also called a variable speed drive, is used to control the speed of an electric motor. A variable speed drive allows you to control the speed (the speed) of the shaft of a motor.
Can JC-Electronics repair all types of drives?
Yes, the technical specialists of JC-Electronics can test and repair all types of drives. Damaged parts of a drive can often be replaced and the drive will also be completely cleaned.
How do you test a defective drive?
At JC-Electronics all functionalities of a drive are 100% tested. This way we only deliver well tested, high quality products to our customers including a 2 year warranty.
How do I (un)install a drive?
The (de)installation of a drive is different for each product. Watch our instructional videos disassembling some drives.
Can JC-Electronics customize and update my drive?
JC-Electronics can update any drive with the latest operating system software. For this you can contact our Customer Service.
How does JC-Electronics ensure the compatibility of a drive?
We know which drives can exchange information with each other. In doing so, we use an item master map that shows which predecessor/successor drives there are of each drive.
