6SL3211-1PE23-3AL0

Repair

Select service ( €1,195.00 )

Description for 6SL3211-1PE23-3AL0

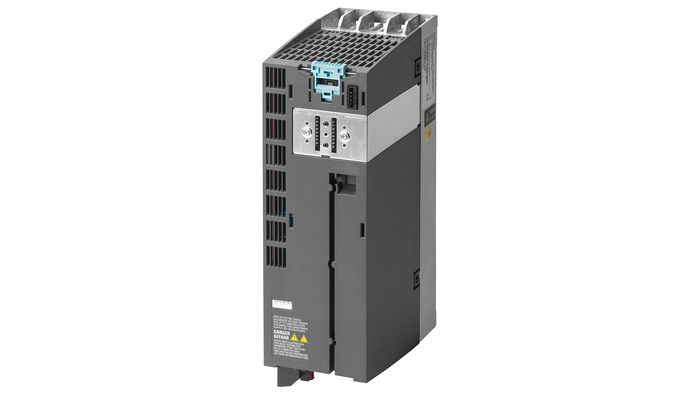

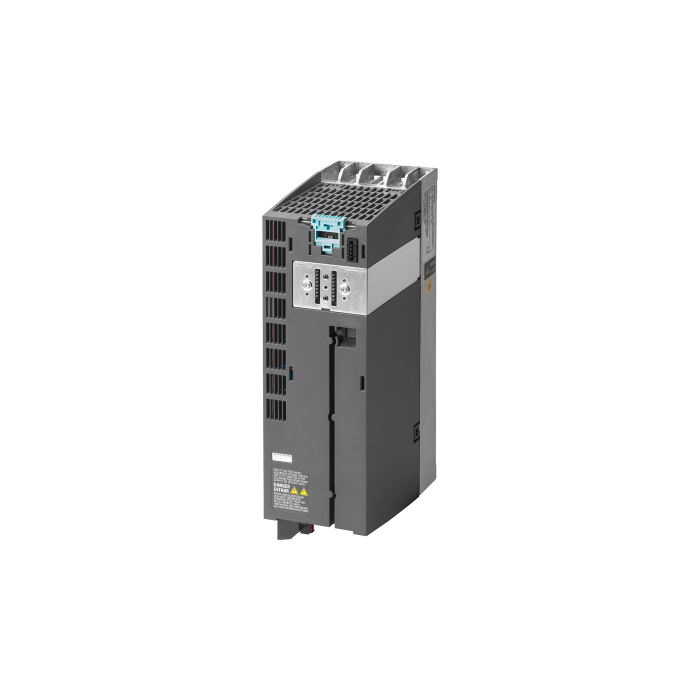

SINAMICS Power Module PM240-2 with integrated Class A filter with integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz Power high overload: 11kW at 200% 3s, 150% 57s, 100% 240 s; Ambient temperature -10 to +50 -¦C Power low overload: 15kW at 150% 3s, 110% 57s, 100% 240 s; Ambient temperature -10 to +40 -¦C 411x 200x 171 (HxWxD), FSC Degree of protection IP20-PT without Control Unit and operating unit Released as of CU firmware version V4.6

The SINAMICS Power Module PM240-2 is engineered for reliability and efficiency within your industrial applications. Featuring an integrated Class A filter and braking chopper, this power module delivers exceptional performance across a range of operational conditions.

Designed for a main voltage range of 380-480V AC and a frequency of 50/60 Hz, it supports high overload capabilities with up to 11kW for short bursts while maintaining a robust output current of 32 A.

With dimensions of 411 x 200 x 171 mm, the power module fits seamlessly into your existing systems. It operates efficiently in ambient temperatures from -10 to +50°C, making it suitable for various environments.

Ensure your machinery operates at peak performance with the SINAMICS Power Module PM240-2, manufactured in Germany and designed to withstand demanding conditions.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Brands:

Siemens

Manufacturer:

Siemens

Range:

Sinamics

Type of product:

Power modules

Product phase:

Phase-Out

Main Voltage:

380-480V AC

Main frequency:

50/60 Hz

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

32 A

Nom. power rating:

11 kW

Degree of protection:

IP20

Degree of protection:

IP20

Dimensions (cm):

20,00 x 17,10 x 41,10

Weight:

6.30kg

Commodity Code:

85044086

Export Control Regulations (ECCN):
