6SL3223-0DE34-5AA0

Notify me when stock is available

Condition

Repair

Select service ( €2,851.00 )

Available on backorder

6SL3223-0DE34-5AA0 New factory sealed

€4,721.13 (Excl. Tax)

20+ In Stock

Expected within 5 weeks

Description for 6SL3223-0DE34-5AA0

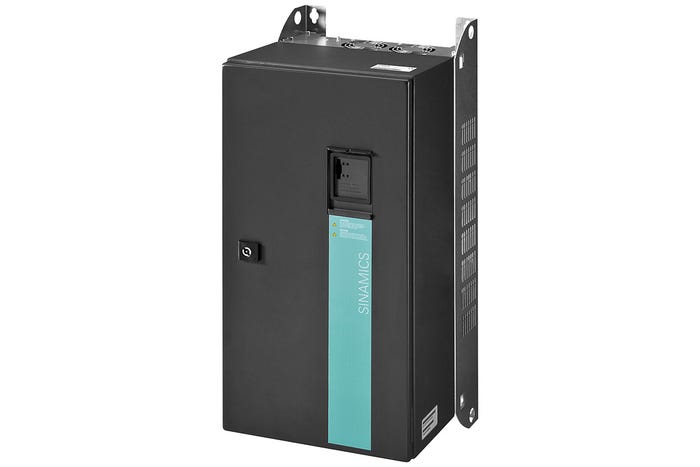

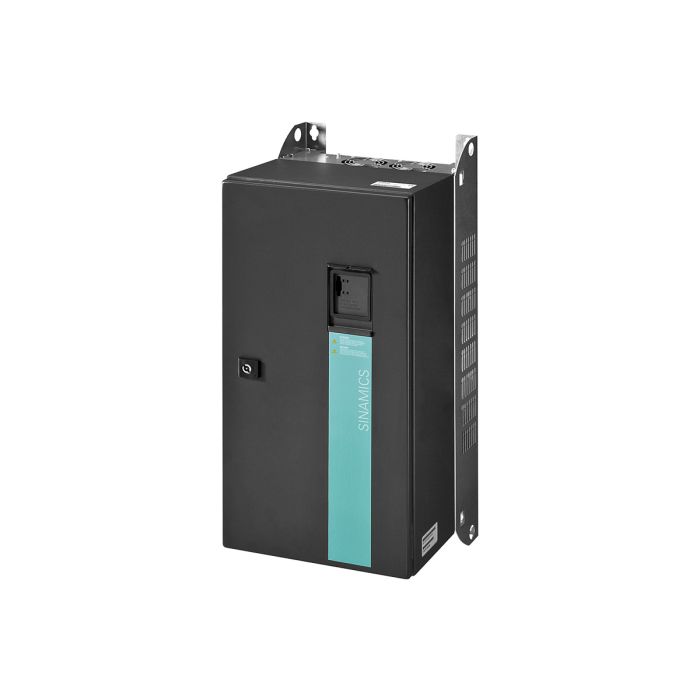

SINAMICS G120P POWER MODULE PM230 WITH BUILT IN CL. A FILTER PROTECTION IP55 / UL TYPE12 3AC380-480V +10/-10% 47-63HZ OUTPUT LOW OVERLOAD: 45KW FOR 110% 60S,100% 240S AMBIENT TEMP 0 TO +40 DEG C(LO) 751 X 320 X 329 (HXBXT), FSE WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU230P-2 FIRMWARE-VERSION V4.3.2

The Siemens 6SL3223-0DE34-5AA0 is a robust SINAMICS G120P Power Module PM230, engineered for demanding industrial environments. This power module features an integrated Class A filter and offers protection class IP55 / UL Type 12, ensuring durability and reliable performance in areas exposed to dust and moisture. Designed for operation with 3-phase AC power (380–480V, +10/-10%, 47–63Hz), the 6SL3223-0DE34-5AA0 delivers a nominal output of 45 kW with low overload capabilities—handling 110% load for 60 seconds and 100% for 240 seconds, making it suitable for variable load applications.

The 6SL3223-0DE34-5AA0 maintains optimal operation at ambient temperatures from 0 to +40°C, supporting continuous use in standard production environments. Its compact dimensions (751 x 320 x 329 mm) streamline installation in control cabinets or on-site panels. The module is supplied without a control unit and panel, but is fully approved for use with the CU230P-2 controller (firmware version V4.3.2 or higher), offering flexibility in system integration. Siemens, the manufacturer, is known for delivering high-quality and dependable industrial electronics for production processes.

High protection rating (IP55 / UL Type 12) for reliable operation in challenging environments
Flexible integration with CU230P-2 controllers; supports advanced automation requirements
Large stock and rapid delivery for minimized production downtime

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120P

Type of product:

Power modules

Product phase:

Active

Predecessor:

6SE9528-4DS55

Main Voltage:

380-480V AC

Main frequency:

50/60 Hz

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

90 A

Nom. power rating:

37 kW

Degree of protection:

IP55

Degree of protection:

IP55

Dimensions (cm):

32,00 x 32,90 x 75,10

Weight:

37.00kg

Commodity Code:

85044086

Export Control Regulations (ECCN):

Product Questions (8)

Why should I choose JC-Electronics?

You can rely on a stock of 300,000 pieces of industrial electronics from leading top-quality brands, both new and refurbished. Therefore, you can also find drives, PLCs, HMIs, and industrial PCs that are no longer produced with us. You always get a 2-year warranty. Additionally, refurbished products are circular, helping you reduce your ecological footprint. Good to know: New products and tested refurbished products ordered before 16:00 CET are shipped the same day.

Why can I trust refurbished electronics from JC-Electronics?

All products are thoroughly cleaned, defects are repaired, and weak elements are proactively replaced. If they pass the endurance test, the products can be sold. You can recognize them by the JCertified warranty seal. The entire process has received the RecQ quality mark from DEKRA and the ISO14001:2015 certificate

How much warranty do I get on a product?

You always get a 2-year warranty on products, both refurbished and new. This is twice as much as the standard factory warranty from many manufacturers.

Are all products available from stock immediately?

New and tested refurbished products from our stock are always available immediately. Untested and non-refurbished products undergo a thorough refurbishment and an extensive testing procedure before shipment.

Can I order products urgently?

Yes, you can. New and refurbished products that are ready for shipment will be dispatched the same day if the order is received before 16:00 CET. An express shipment to the Netherlands, Belgium, Luxembourg, Germany, Austria, Switzerland, France, or Italy will arrive the next day. An express shipment to other countries in the European Union takes 2 days. An express shipment to countries outside the European Union takes 3 days.

Can I have products repaired urgently?

Yes, you can. With an urgent repair, your product will be repaired within 3 working days. Contact the Sales team via sales@jc-electronics.com for this.

Can I buy on account at JC-Electronics?

Yes, under certain conditions. Contact the Sales team via sales@jc-electronics.com for more information.

Why should I buy refurbished electronics?

There are several reasons to purchase a refurbished product. For example, because electronics are no longer made and are hard to get new. But also because refurbished is a sustainable choice, reducing your organization's ecological footprint. Whatever the reason, you always get a 2-year warranty on both refurbished and new electronics at JC-Electronics.
