Description for 6SL3223-0DE35-5AA0

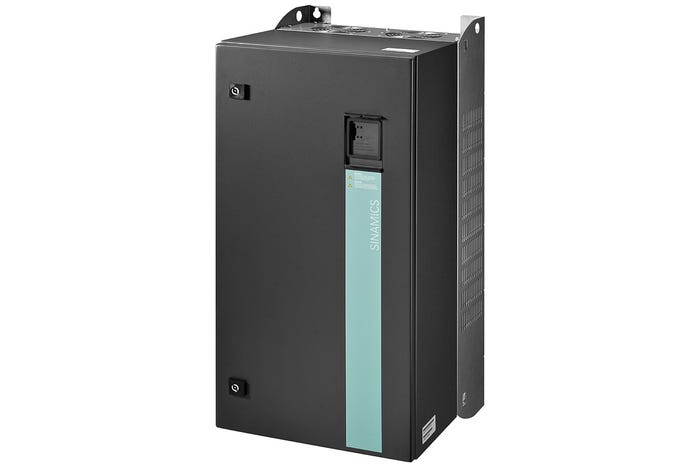

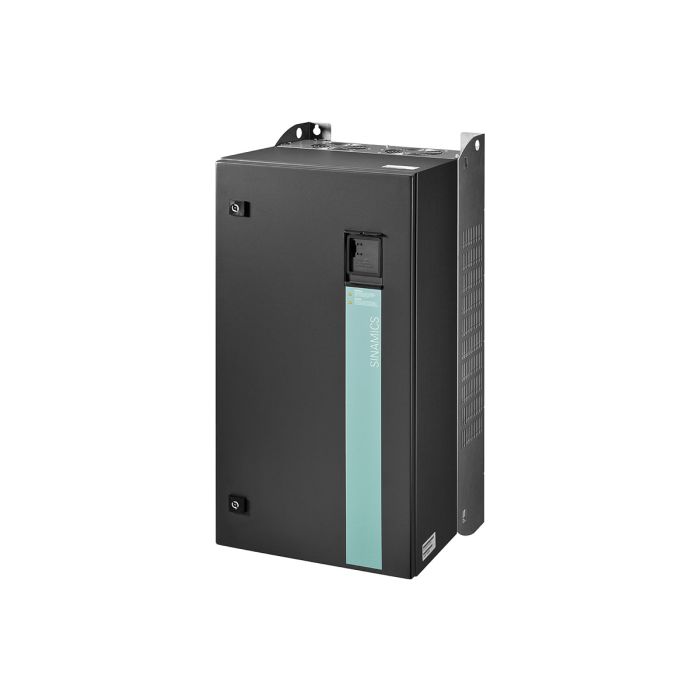

The Siemens 6SL3223-0DE35-5AA0 is a robust power module from the SINAMICS G120P series, designed for demanding industrial environments. This PM230 module includes a built-in Class A filter and provides IP55 / UL Type 12 protection, ensuring reliable operation even in challenging locations. Suitable for supply voltages of 3AC 380-480V (+10/-10%) at 47-63Hz, it delivers a low overload output of 55 kW, supporting 110% overload for 60 seconds and 100% for 240 seconds. The ambient temperature range is from 0 to +40°C (LO), and the compact dimensions of 915 x 410 x 416 mm (HxWxD) allow for flexible installation. The 6SL3223-0DE35-5AA0 is supplied without a control unit and panel and is approved for use with CU230P-2, firmware version V4.3.2.

Brand: Siemens (mentioned twice as requested for clarity)
High reliability with integrated Class A filter and IP55/UL Type 12 protection
Supports demanding applications with 55 kW output and extended overload capability
Large stock and fast delivery for minimal production downtime

The Siemens 6SL3223-0DE35-5AA0 ensures dependable operation in industrial production lines, with a focus on durability and flexible installation options.

SINAMICS G120P POWER MODULE PM230 WITH BUILT IN CL. A FILTER PROTECTION IP55 / UL TYPE12 3AC380-480V +10/-10% 47-63HZ OUTPUT LOW OVERLOAD: 55KW FOR 110% 60S,100% 240S AMBIENT TEMP 0 TO +40 DEG C(LO) 915 X 410 X 416 (HXBXT), FSF WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU230P-2 FIRMWARE-VERSION V4.3.2

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120P

Type of product:

Power modules

Product phase:

Active

Predecessor:

6SE9531-0DS55

Main Voltage:

380-480V AC

Main frequency:

50/60 Hz

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

110 A

Nom. power rating:

45 kW

Degree of protection:

IP55

Degree of protection:

IP55

Dimensions (cm):

41,00 x 41,60 x 91,50

Weight:

69.40 kg

Commodity Code:

85044086

Export Control Regulations (ECCN):

3A225
