6SL3224-0BE27-5UA0

Need more units?

We will support you, please fill in this

Transport and Handling Information

The transportation costs depend on the destination, purchase price, weight, shipping speed, and whether it is a pallet order.

Express shipping and rush orders

With express shipping, the product is delivered faster. For products that are not yet ready for shipping, you can place a rush order. These products still need to be revised.

A rush order is ready for shipping within 2 business days and can then be shipped express. This can be selected during checkout.

Condition

Repair

Select service ( €798.00 )

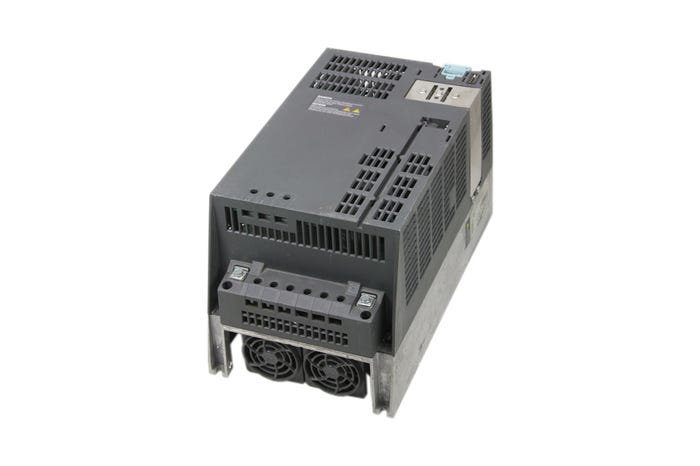

Description for 6SL3224-0BE27-5UA0

SINAMICS G120 PM240 Power Module unfiltered with integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz power high overload: 7.5 kW at 200% 3 s,150% 57 s,100% 240 s ambient temperature -10 to +50 C power low overload: 11 kW at 150% 3 s,110% 57 s,100% 240 s ambient temperature -10 to +40 C 334 x 189 x 185 (HxWxD), FSC degree of protection IP20 without Control Unit and BOP

The Siemens 6SL3224-0BE27-5UA0 is a robust power module designed for demanding industrial environments. This unfiltered SINAMICS G120 PM240 Power Module features an integrated braking chopper and is engineered to deliver consistent performance in production processes. Operating at 380-480 V 3 AC with a frequency range of 47-63 Hz, it supports both high and low overload applications, making it suitable for flexible integration into various automation systems.

With high overload capacity, the 6SL3224-0BE27-5UA0 provides 7.5 kW at 200% for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds, all within an ambient temperature range of -10 to +50 °C. For low overload, it delivers 11 kW at 150% for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds at temperatures from -10 to +40 °C. The compact dimensions of 334 x 189 x 185 mm (HxWxD) and IP20 degree of protection enable efficient installation in control cabinets. Please note that the 6SL3224-0BE27-5UA0 does not include a Control Unit or Basic Operator Panel (BOP).

Brand: Siemens
High overload and low overload modes for versatile performance
Integrated braking chopper supports dynamic applications
SKU 6SL3224-0BE27-5UA0 is available from stock for rapid delivery
Refurbished units of SKU 6SL3224-0BE27-5UA0 come with a standard 2-year warranty

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120

Type of product:

Control units

Is Z-Options Mandatory:

Product phase:

Phase-Out

Predecessor:

6SE6420-2UD27-5CA1

Main Voltage:

380-480V AC

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

25 A

Nom. power rating:

7.5 kW

Degree of protection:

IP20

Degree of protection:

IP20

Dimensions (cm):

18,90 x 18,50 x 33,40

Weight:

6.80kg

Commodity Code:

85044095

Export Control Regulations (ECCN):

Downloads

Datasheet 6SL3224-0BE27-5UA0 223.98 kB
