6SL3224-0BE35-5AA0

Need more units?

We will support you, please fill in this

Transport and Handling Information

The transportation costs depend on the destination, purchase price, weight, shipping speed, and whether it is a pallet order.

Express shipping and rush orders

With express shipping, the product is delivered faster. For products that are not yet ready for shipping, you can place a rush order. These products still need to be revised.

A rush order is ready for shipping within 2 business days and can then be shipped express. This can be selected during checkout.

Condition

Repair

Select service ( €3,945.00 )

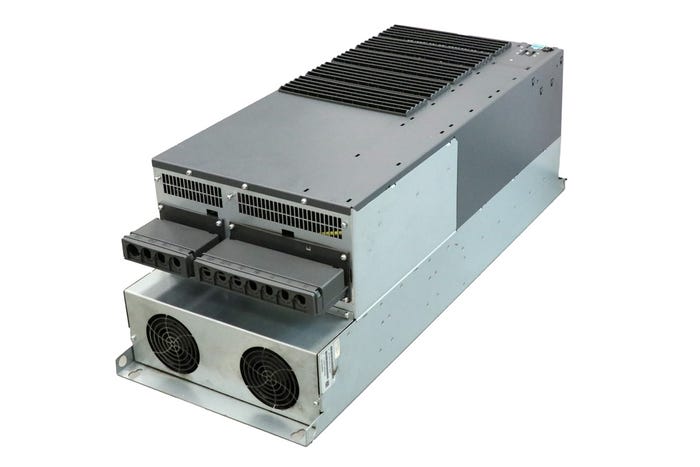

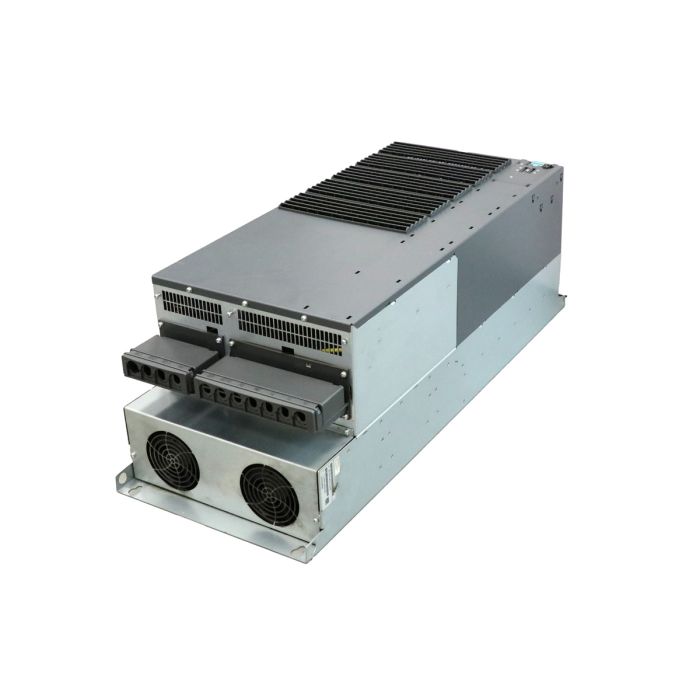

Description for 6SL3224-0BE35-5AA0

SINAMICS G120 PM240 Power Module with integrated filter class A with integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz power high overload: 55 kW at 200% 3 s,150% 57 s,100% 240 s ambient temperature -10 to +50 C power low overload: 75 kW at 150% 3 s,110% 57 s,100% 240 s ambient temperature -10 to +40 C 934 x 350 x 316 (HxWxD), FSF degree of protection IP20 without Control Unit and BOP

The Siemens 6SL3224-0BE35-5AA0 is a robust SINAMICS G120 PM240 Power Module designed for demanding industrial environments. Equipped with an integrated filter class A and a built-in braking chopper, this power module supports input voltages of 380-480 V AC (±10%) at 47-63 Hz. The 6SL3224-0BE35-5AA0 is suitable for both high and low overload scenarios, delivering 55 kW at 200% overload for 3 seconds or up to 75 kW at 150% overload for 3 seconds, depending on the ambient temperature. Its durable construction allows operation within a temperature range of -10°C to +50°C for high overload and up to +40°C for low overload. With dimensions of 934 x 350 x 316 mm (HxWxD) and a protection class of IP20, the 6SL3224-0BE35-5AA0 is engineered for reliable integration in control cabinets, though it is supplied without a Control Unit and BOP.

Brand: Siemens (listed as required, and referenced twice for clarity and compliance)
High overload capacity ensures stable performance during demanding operations
Integrated filter and braking chopper streamline installation and reduce component count
Quick availability from extensive stock and standard 2-year warranty on refurbished units

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120

Type of product:

Control units

Product phase:

Phase-Out

Predecessor:

6SE6440-2AD35-5FA1

Main Voltage:

380-480V AC

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

145 A

Nom. power rating:

55 kW

Degree of protection:

IP20

Degree of protection:

IP20

Dimensions (cm):

35,00 x 31,60 x 93,40

Weight:

51.70kg

Commodity Code:

85044095

Export Control Regulations (ECCN):
