6SL3224-0BE37-5AA0

Need more units?

We will support you, please fill in this

Transport and Handling Information

The transportation costs depend on the destination, purchase price, weight, shipping speed, and whether it is a pallet order.

Express shipping and rush orders

With express shipping, the product is delivered faster. For products that are not yet ready for shipping, you can place a rush order. These products still need to be revised.

A rush order is ready for shipping within 2 business days and can then be shipped express. This can be selected during checkout.

Condition

Repair

Select service ( €4,526.00 )

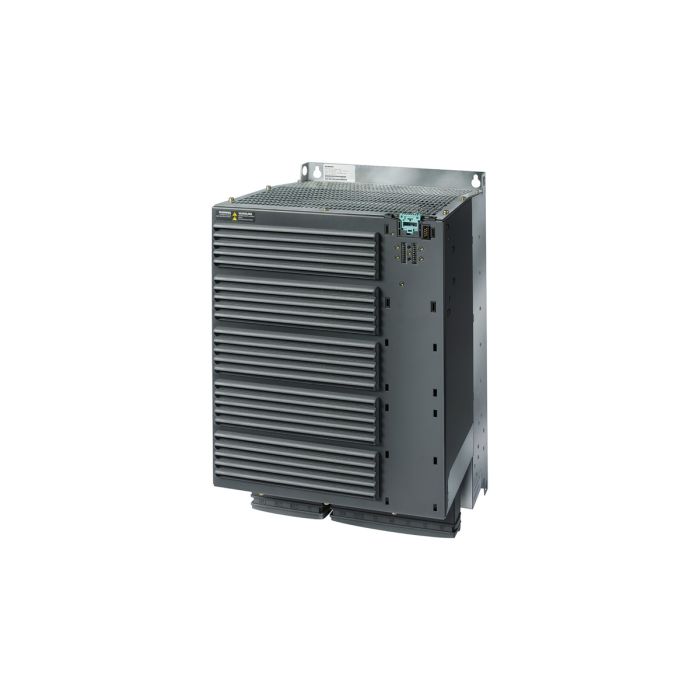

Description for 6SL3224-0BE37-5AA0

SINAMICS G120 PM240 Power Module with integrated filter class A with integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz power high overload: 75 kW at 200% 3 s,150% 57 s,100% 240 s ambient temperature -10 to +50 C power low overload: 90 kW at 150% 3 s,110% 57 s,100% 240 s ambient temperature -10 to +40 C 934 x 350 x 316 (HxWxD), FSF degree of protection IP20 without Control Unit and BOP

The Siemens 6SL3224-0BE37-5AA0 is a robust SINAMICS G120 PM240 Power Module designed for demanding industrial applications. This module operates on a 380-480 V 3-phase AC input, with a frequency range of 47-63 Hz, and features an integrated Class A filter and braking chopper. The 6SL3224-0BE37-5AA0 supports high overload operation with a power rating of 75 kW at 200% for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds within an ambient temperature range of -10 to +50 °C. Under low overload conditions, it delivers up to 90 kW at 150% for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds at ambient temperatures from -10 to +40 °C. The 6SL3224-0BE37-5AA0 has dimensions of 934 x 350 x 316 mm (HxWxD), corresponds to frame size FSF, and offers IP20 protection. Please note, this module is supplied without a Control Unit and Basic Operator Panel (BOP).

Brand: Siemens
Supports both high and low overload scenarios for flexible operation
Integrated Class A filter and braking chopper for enhanced safety and performance
Large stock and fast delivery for minimized downtime

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120

Type of product:

Control units

Product phase:

Phase-Out

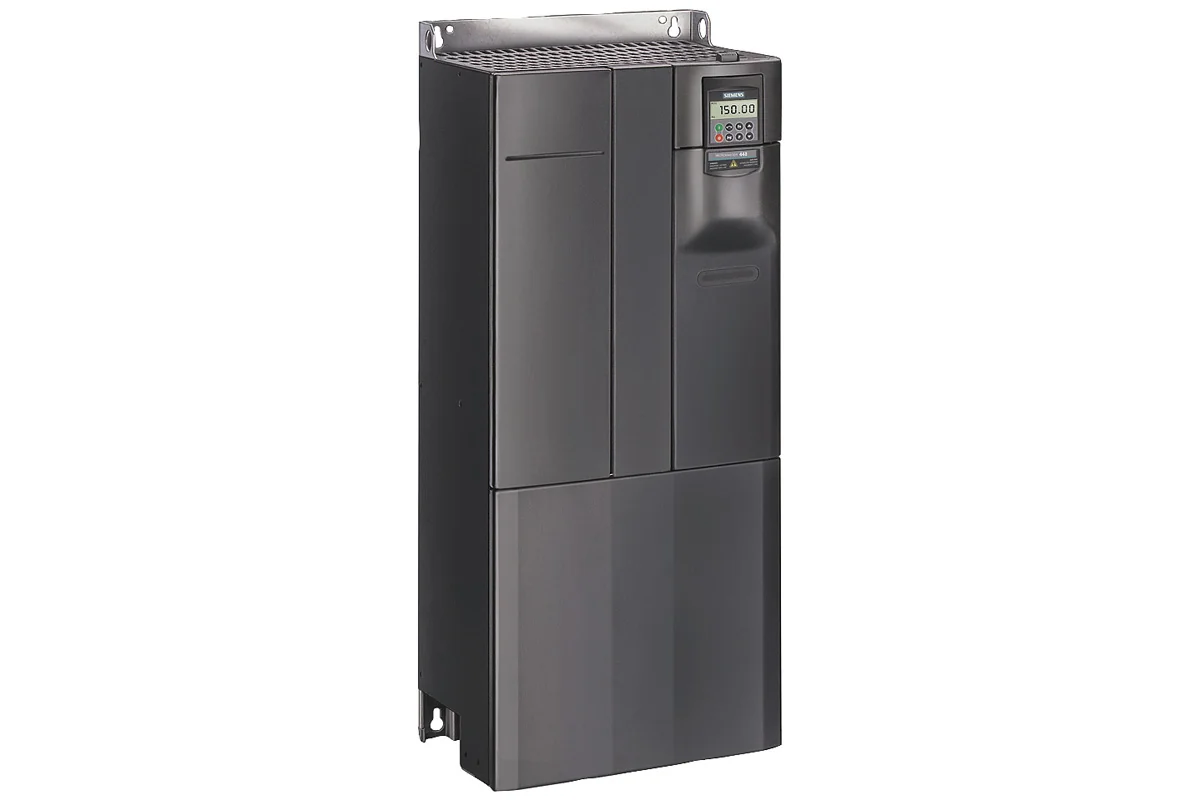

Predecessor:

6SE6440-2AD37-5FA1

Main Voltage:

380-480V AC

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

178 A

Nom. power rating:

75 kW

Degree of protection:

IP20

Degree of protection:

IP20

Dimensions (cm):

35,00 x 31,60 x 93,40

Weight:

66.20kg

Commodity Code:

85044086

Export Control Regulations (ECCN):

EAR99
