6SL3224-0BE37-5UA0

Notify me when stock is available

Condition

Repair

Select service ( €4,157.00 )

Available on backorder

6SL3224-0BE37-5UA0 New factory sealed

€13,192.00 (Excl. Tax)

20+ In Stock

Expected within 2 weeks

Description for 6SL3224-0BE37-5UA0

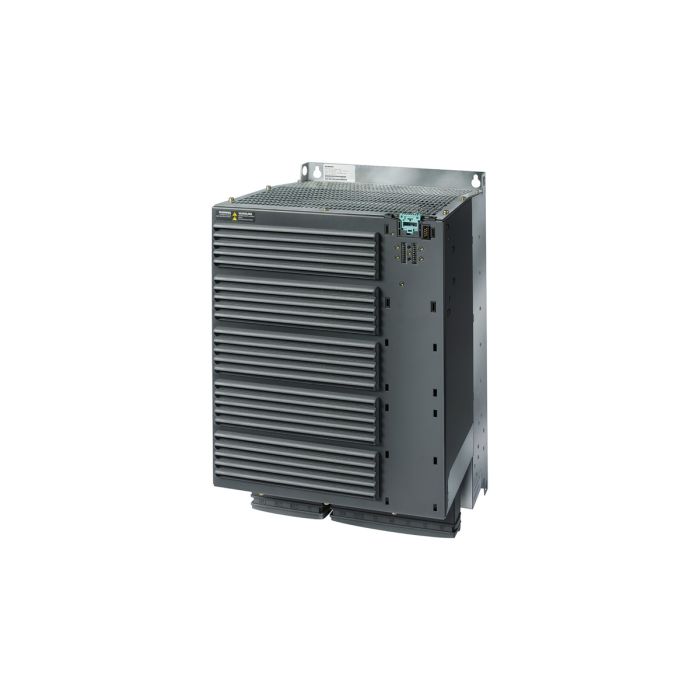

The Siemens 6SL3224-0BE37-5UA0 is a SINAMICS G120 PM240 Power Module designed for demanding industrial automation environments. This unfiltered module features an integrated braking chopper and supports 380-480 V 3-phase AC input, with a frequency range of 47-63 Hz. The Siemens 6SL3224-0BE37-5UA0 is engineered to deliver reliable performance in high-load situations, offering a maximum power output of 75 kW under high overload conditions and up to 90 kW for low overload operations. The module operates efficiently in ambient temperatures from -10 to +50 °C (high overload) and -10 to +40 °C (low overload).

High overload capacity: Handles 75 kW at 200% for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds, ensuring stable operation during peak demands.
Compact installation: Dimensions of 634 x 350 x 316 mm (HxWxD) and IP20 protection class make it suitable for integration in a variety of control cabinets.
Sustainable option: Available as a refurbished unit with standard 2-year warranty, supporting cost efficiency and environmental responsibility.

The 6SL3224-0BE37-5UA0 is supplied without a Control Unit and Basic Operator Panel (BOP), allowing flexibility in system configuration. With its robust design and Siemens’ commitment to quality, the 6SL3224-0BE37-5UA0 supports fast delivery and reliable operation for project managers and production leaders who require minimal downtime and maximum productivity.

SINAMICS G120 PM240 Power Module unfiltered with integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz power high overload: 75 kW at 200% 3 s,150% 57 s,100% 240 s ambient temperature -10 to +50 °C power low overload: 90 kW at 150% 3 s,110% 57 s,100% 240 s ambient temperature -10 to +40 °C 634 x 350 x 316 (HxWxD), FSF degree of protection IP20 without Control Unit and BOP

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120

Type of product:

Control units

Product phase:

Phase-Out

Predecessor:

6SE6440-2UD37-5FA1

Main Voltage:

380-480V AC

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

178 A

Nom. power rating:

75 kW

Degree of protection:

IP20

Degree of protection:

IP20

Dimensions (cm):

35,00 x 31,60 x 63,40

Weight:

35.80 kg

Commodity Code:

85044086

Export Control Regulations (ECCN):

EAR99

Downloads

Datasheet 6SL3224-0BE37-5UA0 234.60 kB
