6SL3224-0XE41-3UA0

Condition

Repair

Select service ( €7,192.00 )

Description for 6SL3224-0XE41-3UA0

SINAMICS G120 PM 240 Power Module unfiltered without integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz power high overload: 132 kW at 160% 3s, 136% 57s, 100% 240 s; ambient temperature 0 to +50 C, power low overload: 160 kW at 150% 3 s, 110% 57 s, 100% 240 s; ambient temperature 0 to +40 C 1533x 326x 545 (HxWxD), FSGX degree of protection IP20 without Control Unit and BOP

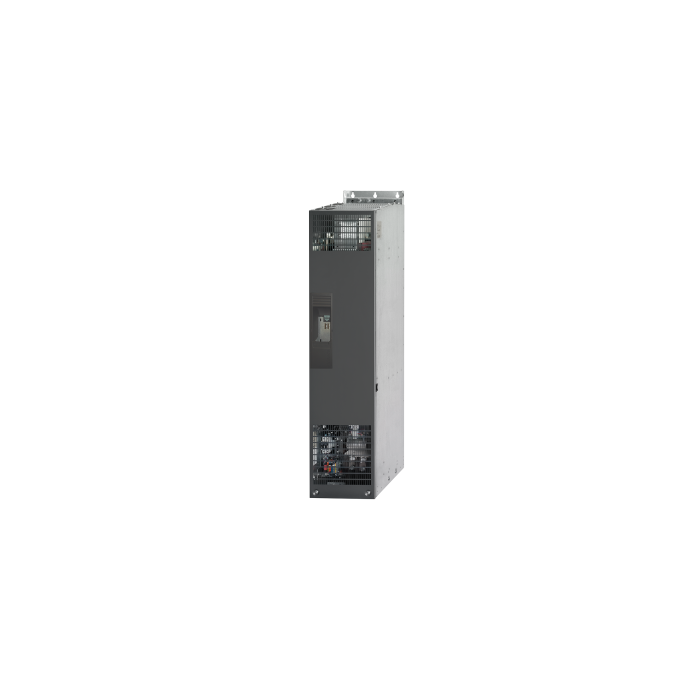

The Siemens 6SL3224-0XE41-3UA0 is a robust power module from the SINAMICS G120 series, designed for demanding industrial environments. This unfiltered PM 240 Power Module operates without an integrated braking chopper and is suitable for 380-480 V 3-phase AC input (±10%, 47-63 Hz). The module supports high overload operations with up to 132 kW output at 160% for 3 seconds, 136% for 57 seconds, and continuous 100% for up to 240 seconds in ambient temperatures up to +50 °C. For low overload demands, it delivers up to 160 kW at 150% for 3 seconds, with 110% for 57 seconds and 100% for 240 seconds at ambient temperatures up to +40 °C. The compact design measures 1533 x 326 x 545 mm (HxWxD) and features an FSGX frame size with IP20 protection, ensuring safe installation in controlled environments. Note that the 6SL3224-0XE41-3UA0 is supplied without a Control Unit and Basic Operator Panel (BOP).

Brand: Siemens – recognized for highly reliable and durable industrial automation solutions.
Wide power range and overload capability, suitable for variable production demands.
Available from large stock, with quick delivery for minimal production downtime on SKU 6SL3224-0XE41-3UA0.

The Siemens 6SL3224-0XE41-3UA0 meets stringent quality standards and is ideal for integration into advanced production lines requiring flexible, scalable power management.

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120

Type of product:

Control units

Product phase:

Phase-Out

Predecessor:

6SE6440-2UD41-3GA1

Main Voltage:

380-480V AC

Main frequency:

50/60 Hz

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

302 A

Nom. power rating:

132 kW

Degree of protection:

IP20

Degree of protection:

IP20

Dimensions (cm):

32,60 x 54,70 x 153,30

Weight:

169.60kg

Commodity Code:

85044086

Export Control Regulations (ECCN):
