Description for 6SL3224-0XE41-6UA0

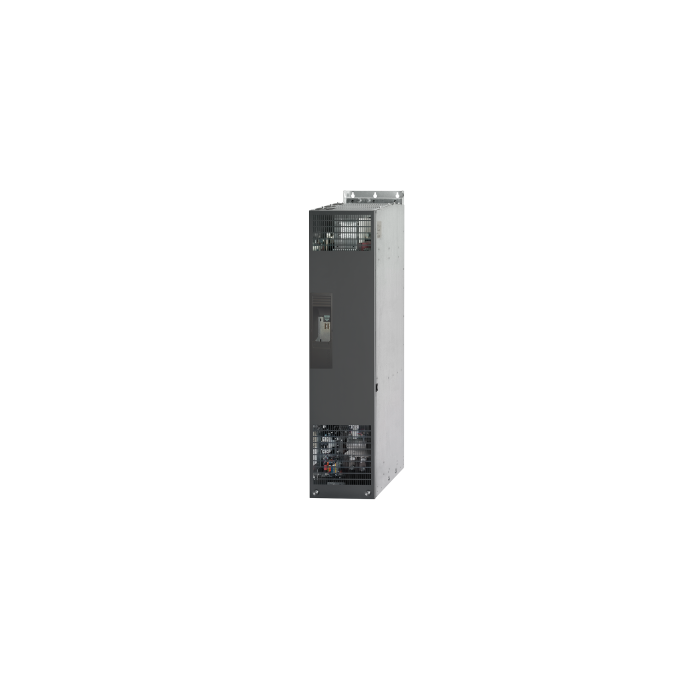

The Siemens 6SL3224-0XE41-6UA0 is a robust SINAMICS G120 Power Module PM240 designed specifically for demanding industrial automation environments. With support for 3-phase AC voltages between 380-480V (+10/-10%) and a frequency range of 47-63Hz, this unit delivers high overload performance suited to intensive production line operations. The 6SL3224-0XE41-6UA0 does not include an integrated filter or braking chopper, offering greater flexibility for customized system configurations. The power module is rated for high overloads up to 160 kW (160% for 3 seconds, 136% for 57 seconds, 100% for 240 seconds) at ambient temperatures up to 50°C. For lighter overloads, it provides output up to 200 kW (150% for 3 seconds, 110% for 57 seconds, 100% for 240 seconds) at ambient temperatures up to 40°C. The dimensions of the 6SL3224-0XE41-6UA0 are 1533 x 326 x 545 mm (HxWxD), and it features IP20 protection, making it suitable for controlled environments. Please note, this module is supplied without a control unit or Basic Operator Panel (BOP).

Siemens reliability: Trusted industrial performance under demanding conditions
Flexible configuration: No built-in filter or braking chopper for adaptable system integration
High overload capacity: Supports rigorous production processes with multiple overload ratings

SINAMICS G120 POWER MODULE PM240 WITHOUT FILTER WITHOUT BULT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 160KW FOR 160% 3S,136% 57S,100% 240S AMBIENT TEMP 0 TO +50 DEG C OUTPUT LIGHT OVERLOAD: 200KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP 0 TO +40 DEG C 1533 X 326 X 545 (HXWXD), FSGX PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Manufacturer:

Siemens

Range:

Sinamics

Subrange:

G120

Type of product:

Power modules

Product phase:

Phase-Out

Predecessor:

6SE6440-2UD41-6GA1

Main Voltage:

380-480V AC

Main frequency:

50/60 Hz

Number of phases input:

Max. output frequency:

550 Hz

Max. output voltage:

550 V

Nom. output current:

370 A

Nom. power rating:

160 kW

Degree of protection:

IP20

Degree of protection:

IP20

Dimensions (cm):

32,60 x 54,70 x 153,30

Weight:

169.60 kg

Commodity Code:

85044086

Export Control Regulations (ECCN):

EAR99
